0395145015

Active

Molex

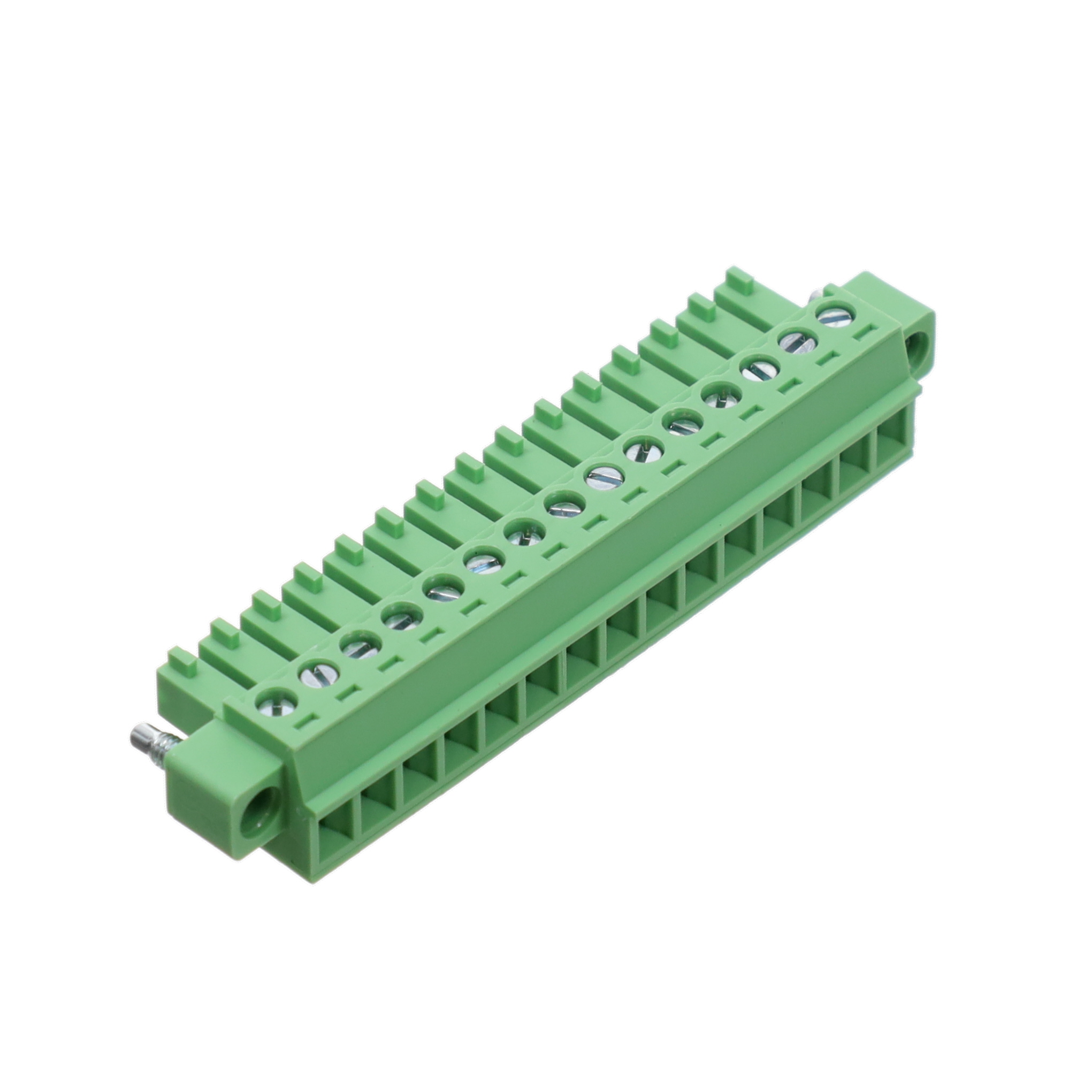

TERM BLOCK PLUG 15POS STR 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0395145015

Active

Molex

TERM BLOCK PLUG 15POS STR 3.81MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395145015

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	15
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	15
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.23 Nm
Torque - Screw	2 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	16 AWG

039514 Series

Part	Contact Mating Finish	Voltage - UL	Termination Style	Color	Current - UL	Number of Positions	Screw Size	Number of Levels	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Features	Material Flammability Rating	Positions Per Level	Contact Material	Pitch [x]	Pitch [x]	Type	Number of Positions
Molex 0395140512	Gold	300 V	Screw - Rising Cage Clamp	Black	8 A	12	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	12	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395145018	Tin	300 V	Screw - Rising Cage Clamp	Green	8 A	18	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	18	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395145505	Gold	300 V	Screw - Rising Cage Clamp	Green	8 A		M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	5	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395140208	Tin	300 V	Screw - Rising Cage Clamp	Black	8 A	8	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange Positions Stamped	UL94 V-0	8	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395140012	Tin	300 V	Screw - Rising Cage Clamp	Black	8 A	12	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	12	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395145512	Gold	300 V	Screw - Rising Cage Clamp	Green	8 A	12	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	12	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395145015	Tin	300 V	Screw - Rising Cage Clamp	Green	8 A	15	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	15	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395145516	Gold	300 V	Screw - Rising Cage Clamp	Green	8 A		M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	16	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets	16
Molex 0395140015	Tin	300 V	Screw - Rising Cage Clamp	Black	8 A	15	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	15	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets
Molex 0395145518	Gold	300 V	Screw - Rising Cage Clamp	Green	8 A	18	M2	1	Free Hanging (In-Line)	-40 °C	115 °C	0.23 Nm	2 Lb-In	30 AWG	16 AWG	Mating Flange	UL94 V-0	18	Phosphor Bronze	0.15 in	3.81 mm	Plug Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.56
		10	$ 5.18
		25	$ 4.92
		50	$ 4.47
		100	$ 4.29
		396	$ 3.79
		792	$ 3.41
		1188	$ 3.28

Description

General part information

039514 Series

15 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
