M3AKK-1006R

Active

3M (TC)

IDC CABLE - MSC10K/MC10M/MPK10K

Deep-Dive with AI

Search across all available documentation for this part.

Documents4600 Series Drawing Ribbon Cable Assembly Length Guide +1

M3AKK-1006R

Active

3M (TC)

IDC CABLE - MSC10K/MC10M/MPK10K

Deep-Dive with AI

Documents4600 Series Drawing Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3AKK-1006R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3AKK Series

Part	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length	Length	Cable Termination	Length [x]	Length [x]	Number of Positions	Length	Length
3M (TC) M3AKK-1620K	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin	16	508 mm	1.67 ft	IDC
3M (TC) M3AKK-3036R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin				IDC	3 ft	914.4 mm	30
3M (TC) M3AKK-2036R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin				IDC	3 ft	914.4 mm	20
3M (TC) M3AKK-2436R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin				IDC	3 ft	914.4 mm	24
3M (TC) M3AKK-3406J	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold		0.76 Ám	30 Áin		152.4 mm		IDC			34	6 "	0.5 '
3M (TC) M3AKK-4006R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin		152.4 mm		IDC			40	6 "	0.5 '
3M (TC) M3AKK-2606J	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold		0.76 Ám	30 Áin		152.4 mm		IDC			26	6 "	0.5 '
3M (TC) M3AKK-1060K	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin		1.52 m	5 '	IDC			10
3M (TC) M3AKK-1006R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin		152.4 mm		IDC			10	6 "	0.5 '
3M (TC) M3AKK-3440K	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin				IDC	3.34 ft	1.02 m	34

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.84
		10	$ 9.86
		25	$ 8.91
		50	$ 8.27
		100	$ 7.69
		250	$ 7.00
		500	$ 6.54
		1000	$ 6.12

Description

General part information

M3AKK Series

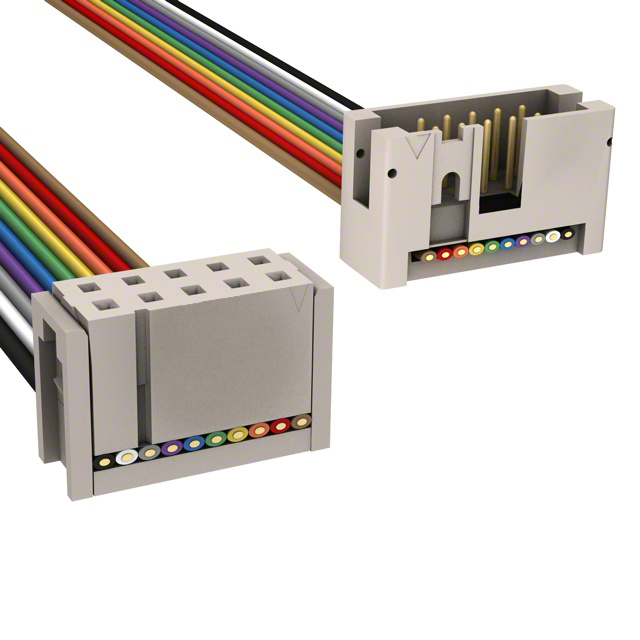

10 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

4600 Series Drawing

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
