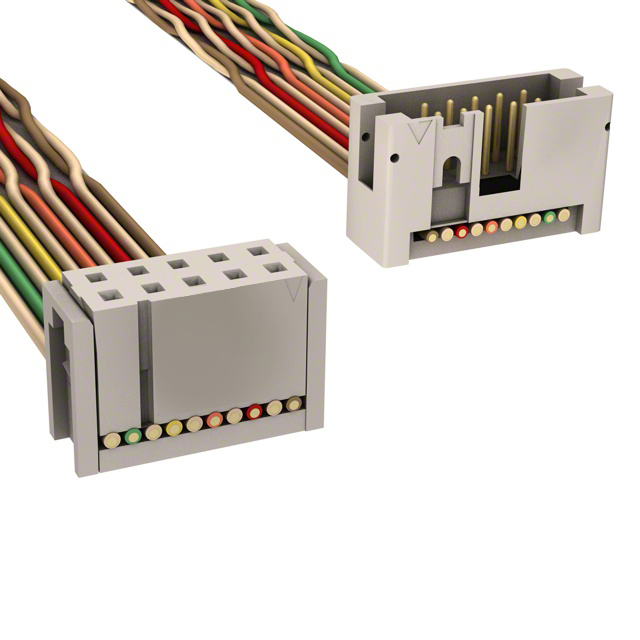

M3AKK-1060K

Active

3M (TC)

IDC CABLE - MSC10K/MC10F/MPK10K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Datasheet +1

M3AKK-1060K

Active

3M (TC)

IDC CABLE - MSC10K/MC10F/MPK10K

Deep-Dive with AI

Documents1700 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3AKK-1060K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Length	1.52 m
Length	5 '
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3AKK Series

Part	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Connector Type	Pitch - Connector	Pitch - Connector	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length	Length	Cable Termination	Length [x]	Length [x]	Number of Positions	Length	Length
3M (TC) M3AKK-1620K	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin	16	508 mm	1.67 ft	IDC
3M (TC) M3AKK-3036R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin				IDC	3 ft	914.4 mm	30
3M (TC) M3AKK-2036R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin				IDC	3 ft	914.4 mm	20
3M (TC) M3AKK-2436R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin				IDC	3 ft	914.4 mm	24
3M (TC) M3AKK-3406J	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold		0.76 Ám	30 Áin		152.4 mm		IDC			34	6 "	0.5 '
3M (TC) M3AKK-4006R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin		152.4 mm		IDC			40	6 "	0.5 '
3M (TC) M3AKK-2606J	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold		0.76 Ám	30 Áin		152.4 mm		IDC			26	6 "	0.5 '
3M (TC) M3AKK-1060K	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin		1.52 m	5 '	IDC			10
3M (TC) M3AKK-1006R	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Ribbon	0.76 Ám	30 Áin		152.4 mm		IDC			10	6 "	0.5 '
3M (TC) M3AKK-3440K	0.05 "	1.27 mm	2	Unshielded	Socket to Plug	0.1 in	2.54 mm	Gold	Multiple Twisted Pair (Flat)	0.76 Ám	30 Áin				IDC	3.34 ft	1.02 m	34

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.12
		10	$ 13.94
		25	$ 12.61
		50	$ 11.71
		100	$ 10.90
		250	$ 9.94
		500	$ 9.29
		1000	$ 8.71

Description

General part information

M3AKK Series

10 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
