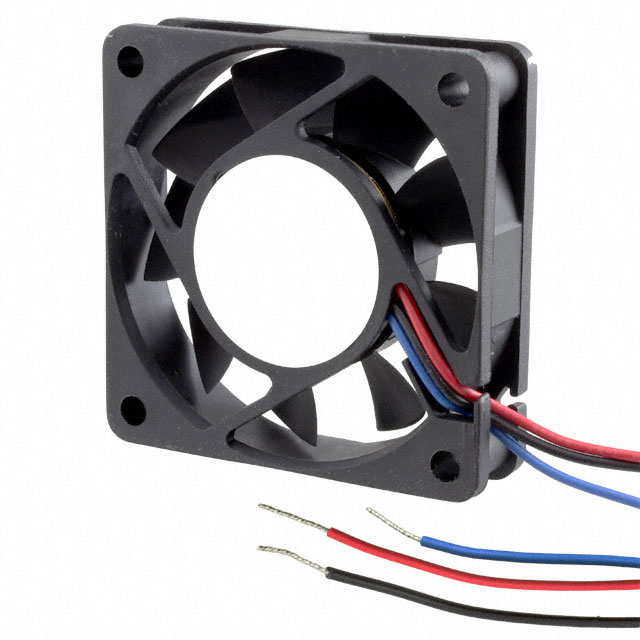

AFB0612HHB-F00

Obsolete

Delta Electronics

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Fans, Electric - Component UL Cert +2

AFB0612HHB-F00

Obsolete

Delta Electronics

FAN AXIAL 60X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet Fans, Electric - Component UL Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0612HHB-F00

Air Flow	17.3 CFM
Air Flow	0.484 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	120 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	35 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.44 W
RPM	4500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.195 in H2O
Static Pressure	48.6 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.098 lb
Weight	44.45 g
Width [x]	15 mm

AFB0612 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Features	Approval Agency	Air Flow	Air Flow	RPM	Current Rating (Amps)	Termination	Noise	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Power (Watts)	Bearing Type	Width [y]	Material - Blade	Static Pressure	Static Pressure	Weight	Weight	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Width [x]
Delta Electronics AFB0612VH-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	30.5 CFM	0.854 m³/min	5500 RPM	0.23 A	3 Wire Leads	42.5 dB(A)	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	2.76 W	Ball	25.4 mm	Plastic	85.9 Pa	0.345 in H2O	80 g	0.176 lb	Plastic
Delta Electronics AFB0612EHD-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	35.2 CFM	0.986 m³/min	6600 RPM	0.31 A	3 Wire Leads	45 dB(A)	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	3.72 W	Ball	20 mm	Plastic	120.6 Pa	0.484 in H2O	56.25 g	0.124 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612LC	60 mm	60 mm	70000 Hrs		CE CSA UL VDE	15.4 CFM	0.431 m³/min	3000 RPM		2 Wire Leads	24 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial		Ball	13 mm	Plastic	20.6 Pa	0.083 in H2O	33.56 g	0.074 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612MC	60 mm	60 mm	70000 Hrs		CE CSA UL VDE	18.2 CFM	0.51 m³/min	3600 RPM	110 mA	2 Wire Leads	28 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.32 W	Ball	13 mm	Plastic	29.6 Pa	0.119 in H2O	33.56 g	0.074 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612DH-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	50.4 CFM	1.41 mł/min	9000 RPM	0.84 A	3 Wire Leads	55 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	10.08 W	Ball	25.4 mm	Plastic	230.7 Pa	0.926 in H2O	80 g	0.176 lb	Plastic	7 V	13.2 VDC
Delta Electronics AFB0612HHD-R00	60 mm	60 mm	70000 Hrs	Locked Rotor Sensor	CE CSA UL VDE	18.4 CFM	0.515 mł/min	4400 RPM	150 mA	3 Wire Leads	31 dB(A)	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.8 W	Ball	20 mm	Plastic	57 Pa	0.229 in H2O	62.14 g	0.137 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612EH-AB	60 mm	60 mm	70000 Hrs		CE CSA UL VDE	38.4 CFM	1.08 m³/min	6800 RPM	0.38 A	2 Wire Leads	46.5 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	4.56 W	Ball	25.4 mm	Plastic	135.5 Pa	0.544 in H2O	80 g	0.176 lb	Plastic
Delta Electronics AFB0612EH-ABF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	38.4 CFM	1.08 m³/min	6800 RPM	0.38 A	3 Wire Leads	46.5 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	4.56 W	Ball	25.4 mm	Plastic	135.5 Pa	0.544 in H2O	80 g	0.176 lb	Plastic
Delta Electronics AFB0612SHE-AF00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	55.3 CFM	1.55 m³/min	10000 RPM	880 mA	3 Wire Leads	57 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	10.56 W	Ball	38 mm	Plastic	303.2 Pa	1.217 in H2O	117.03 g	0.258 lb	Plastic	7 V	13.8 VDC
Delta Electronics AFB0612HHB-F00	60 mm	60 mm	70000 Hrs	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	17.3 CFM	0.484 mł/min	4500 RPM	120 mA	3 Wire Leads	35 dB	12 VDC	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	1.44 W	Ball		Plastic	48.6 Pa	0.195 in H2O	44.45 g	0.098 lb	Plastic	7 V	13.8 VDC	15 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0612 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 17.3 CFM (0.484m³/min) 3 Wire Leads
