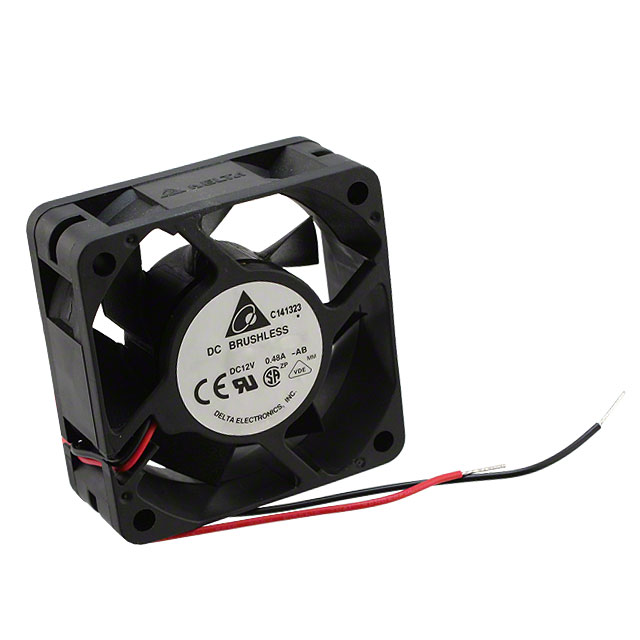

AFB0612EH-AB
ActiveDelta Electronics
FAN AXIAL 60X25.4MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0612EH-AB
ActiveDelta Electronics
FAN AXIAL 60X25.4MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0612EH-AB |
|---|---|
| Air Flow | 1.08 m³/min |
| Air Flow | 38.4 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.38 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 46.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 4.56 W |
| RPM | 6800 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.544 in H2O |
| Static Pressure | 135.5 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 80 g |
| Weight | 0.176 lb |
| Width [y] | 25.4 mm |
AFB0612 Series
| Part | Size / Dimension [x] | Size / Dimension [y] | Lifetime @ Temp. | Features | Approval Agency | Air Flow | Air Flow | RPM | Current Rating (Amps) | Termination | Noise | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Fan Type | Power (Watts) | Bearing Type | Width [y] | Material - Blade | Static Pressure | Static Pressure | Weight | Weight | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | 30.5 CFM | 0.854 m³/min | 5500 RPM | 0.23 A | 3 Wire Leads | 42.5 dB(A) | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 2.76 W | Ball | 25.4 mm | Plastic | 85.9 Pa | 0.345 in H2O | 80 g | 0.176 lb | Plastic | |||
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | 35.2 CFM | 0.986 m³/min | 6600 RPM | 0.31 A | 3 Wire Leads | 45 dB(A) | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 3.72 W | Ball | 20 mm | Plastic | 120.6 Pa | 0.484 in H2O | 56.25 g | 0.124 lb | Plastic | 7 V | 13.8 VDC | |
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | CE CSA UL VDE | 15.4 CFM | 0.431 m³/min | 3000 RPM | 2 Wire Leads | 24 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | Ball | 13 mm | Plastic | 20.6 Pa | 0.083 in H2O | 33.56 g | 0.074 lb | Plastic | 7 V | 13.8 VDC | ||||
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | CE CSA UL VDE | 18.2 CFM | 0.51 m³/min | 3600 RPM | 110 mA | 2 Wire Leads | 28 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 1.32 W | Ball | 13 mm | Plastic | 29.6 Pa | 0.119 in H2O | 33.56 g | 0.074 lb | Plastic | 7 V | 13.8 VDC | ||
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | 50.4 CFM | 1.41 mł/min | 9000 RPM | 0.84 A | 3 Wire Leads | 55 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 10.08 W | Ball | 25.4 mm | Plastic | 230.7 Pa | 0.926 in H2O | 80 g | 0.176 lb | Plastic | 7 V | 13.2 VDC | |
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Sensor | CE CSA UL VDE | 18.4 CFM | 0.515 mł/min | 4400 RPM | 150 mA | 3 Wire Leads | 31 dB(A) | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 1.8 W | Ball | 20 mm | Plastic | 57 Pa | 0.229 in H2O | 62.14 g | 0.137 lb | Plastic | 7 V | 13.8 VDC | |
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | CE CSA UL VDE | 38.4 CFM | 1.08 m³/min | 6800 RPM | 0.38 A | 2 Wire Leads | 46.5 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 4.56 W | Ball | 25.4 mm | Plastic | 135.5 Pa | 0.544 in H2O | 80 g | 0.176 lb | Plastic | ||||
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | 38.4 CFM | 1.08 m³/min | 6800 RPM | 0.38 A | 3 Wire Leads | 46.5 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 4.56 W | Ball | 25.4 mm | Plastic | 135.5 Pa | 0.544 in H2O | 80 g | 0.176 lb | Plastic | |||
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | 55.3 CFM | 1.55 m³/min | 10000 RPM | 880 mA | 3 Wire Leads | 57 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 10.56 W | Ball | 38 mm | Plastic | 303.2 Pa | 1.217 in H2O | 117.03 g | 0.258 lb | Plastic | 7 V | 13.8 VDC | |
Delta Electronics | 60 mm | 60 mm | 70000 Hrs | Locked Rotor Protection Speed Sensor (Tach) | CE CSA UL VDE | 17.3 CFM | 0.484 mł/min | 4500 RPM | 120 mA | 3 Wire Leads | 35 dB | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | Tubeaxial | 1.44 W | Ball | Plastic | 48.6 Pa | 0.195 in H2O | 44.45 g | 0.098 lb | Plastic | 7 V | 13.8 VDC | 15 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.40 | |
| 10 | $ 16.61 | |||
| 25 | $ 15.03 | |||
| 50 | $ 13.84 | |||
| 180 | $ 12.42 | |||
| 360 | $ 11.47 | |||
| 540 | $ 10.68 | |||
Description
General part information
AFB0612 Series
Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 38.4 CFM (1.08m³/min) 2 Wire Leads
