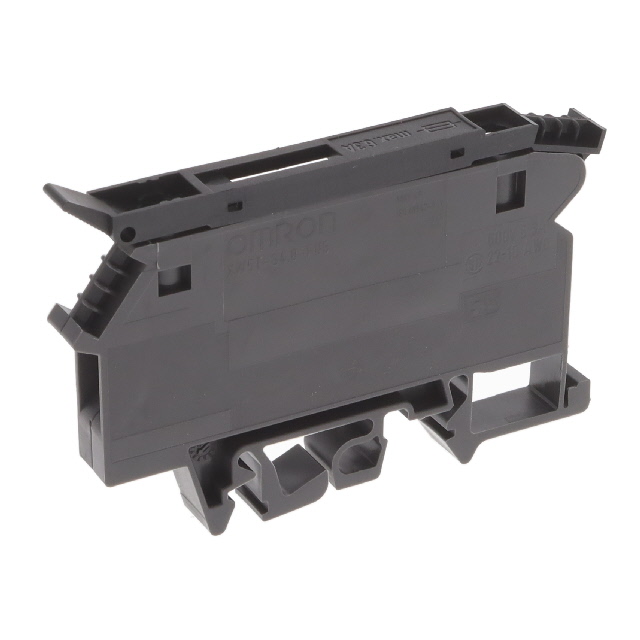

XW5T-S4.0-FU5
ActiveOmron Electronics Inc-EMC Div
FUSETBKNIFEEDGDISCNT4MM6.3A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XW5T-S4.0-FU5
ActiveOmron Electronics Inc-EMC Div
FUSETBKNIFEEDGDISCNT4MM6.3A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XW5T-S4.0-FU5 |
|---|---|
| Color | Gray |
| Current - IEC | 6.3 A |
| Disconnect Type | Fuse, Lever |
| Fuse Type | 5mm x 25mm, 5mm x 20mm, 5mm x 30mm |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 8 mm |
| Terminal - Width [y] | 8 mm |
| Termination Style | Screw |
| Type | Disconnect |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.38 | |
| 10 | $ 11.67 | |||
| 25 | $ 10.38 | |||
| 50 | $ 9.61 | |||
| 100 | $ 8.98 | |||
| 250 | $ 8.36 | |||
| 500 | $ 8.00 | |||
| 1000 | $ 7.72 | |||
Description
General part information
XW5T-S4 Series
Terminal Block Connector 2 Position Disconnect Gray 10-22 AWG
