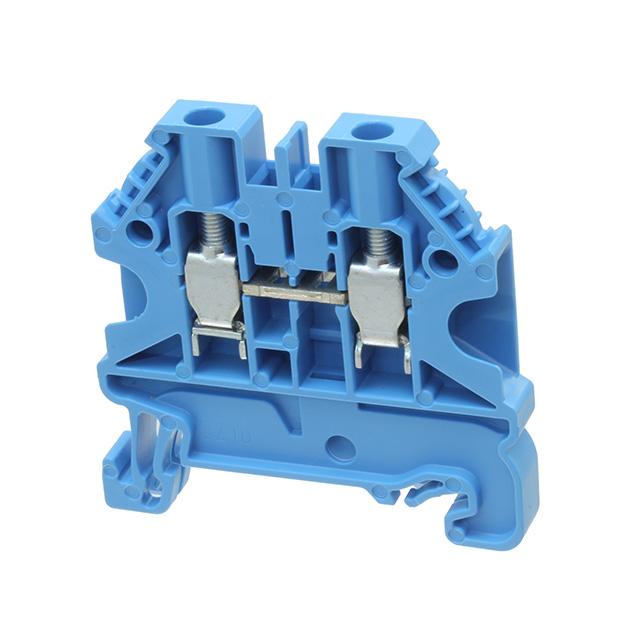

XW5T-S4.0-1.1-1BL

Active

Omron Electronics Inc-EMC Div

TB SCREW 4MM 1:1 1TIER BLUE

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

TB SCREW 4MM 1:1 1TIER BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	XW5T-S4.0-1.1-1BL

Color	Blue
Current - IEC	32 A
Current - UL	30 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	9 mm
Terminal - Width [y]	6 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	1 kV
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm˛ [Max]	6 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛

Part	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions	Material Flammability Rating	Disconnect Type	Current - IEC	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Material - Insulation	Voltage - UL	Termination Style	Fuse Type	Voltage - IEC	Color	Type	Terminal - Width [y]	Stripping Length	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Current - UL
Omron Electronics Inc-EMC Div XW5T-S4.0-FU5	0.5 mm²	6 mm²	2	UL94 V-0	Fuse Lever	6.3 A	1	22 AWG	10 AWG	Nylon Polyamide (PA)	600 V	Screw	5mm x 20mm 5mm x 25mm 5mm x 30mm	800 V	Gray	Disconnect	8 mm	8 mm
Omron Electronics Inc-EMC Div XW5T-S4.0-1.1-1BL			2	UL94 V-0		32 A	1	26 AWG	10 AWG	Nylon Polyamide (PA)	600 V	Screw		1 kV	Blue	Feed Through	6 mm	9 mm	0.14 mm˛	6 mm˛	30 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Blue 10-26 AWG
