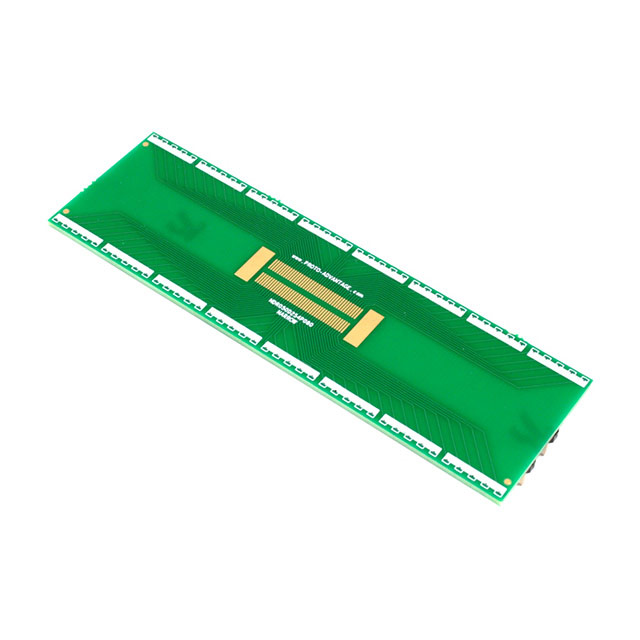

NDR050D254P080

Active

Chip Quik Inc.

NARROW DUAL ROW 0.5MM PITCH 80-P

Search across all available documentation for this part.

Active

Chip Quik Inc.

NARROW DUAL ROW 0.5MM PITCH 80-P

Technical Specifications

Parameters and characteristics for this part

Part	Material	Number of Positions	Pitch [x]	Pitch [x]	Package Accepted	Proto Board Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Chip Quik Inc. NDR050P080-S	Stainless Steel	80	0.5 mm	0.02 in
Chip Quik Inc. NDR050P040-S	Stainless Steel	40	0.5 mm	0.02 in
Chip Quik Inc. NDR050D254P080	FR4 Epoxy Glass	80	0.5 mm	0.02 in	0.5mm Connector	SMD to DIP	1.2 "	101 mm	30.48 mm	3.976 "
Chip Quik Inc. NDR050D254P060	FR4 Epoxy Glass	60	0.5 mm	0.02 in	0.5mm Connector	SMD to DIP	25.4 mm	76.2 mm	25.4 mm	3 "
Chip Quik Inc. NDR050D254P040	FR4 Epoxy Glass	40	0.5 mm	0.02 in	0.5mm Connector	SMD to DIP	25.4 mm	50.8 mm	25.4 mm	2 in
Chip Quik Inc. NDR050P060-S	Stainless Steel	60	0.5 mm	0.02 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.09

General part information

NARROW DUAL ROW 0.5MM PITCH 80-P

Technical documentation and resources
