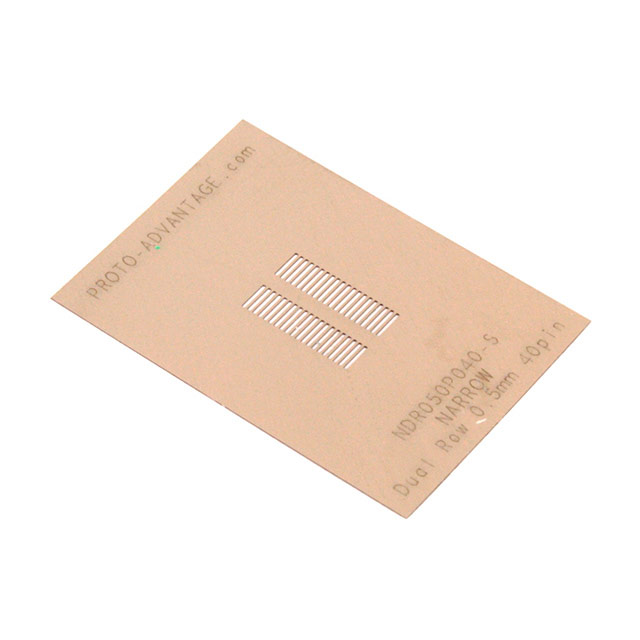

NDR050P040-S
ActiveChip Quik Inc.
NARROW DUAL ROW 0.5MM PITCH 40-P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NDR050P040-S
ActiveChip Quik Inc.
NARROW DUAL ROW 0.5MM PITCH 40-P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NDR050P040-S |
|---|---|
| Material | Stainless Steel |
| Number of Positions | 40 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
NDR050 Series
| Part | Material | Number of Positions | Pitch [x] | Pitch [x] | Package Accepted | Proto Board Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Chip Quik Inc. | Stainless Steel | 80 | 0.5 mm | 0.02 in | ||||||
Chip Quik Inc. | Stainless Steel | 40 | 0.5 mm | 0.02 in | ||||||
Chip Quik Inc. | FR4 Epoxy Glass | 80 | 0.5 mm | 0.02 in | 0.5mm Connector | SMD to DIP | 1.2 " | 101 mm | 30.48 mm | 3.976 " |
Chip Quik Inc. | FR4 Epoxy Glass | 60 | 0.5 mm | 0.02 in | 0.5mm Connector | SMD to DIP | 25.4 mm | 76.2 mm | 25.4 mm | 3 " |
Chip Quik Inc. | FR4 Epoxy Glass | 40 | 0.5 mm | 0.02 in | 0.5mm Connector | SMD to DIP | 25.4 mm | 50.8 mm | 25.4 mm | 2 in |
Chip Quik Inc. | Stainless Steel | 60 | 0.5 mm | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.59 | |
Description
General part information
NDR050 Series
NARROW DUAL ROW 0.5MM PITCH 40-P
