Technical Specifications
Parameters and characteristics for this part
| Specification | N5030L 17 |
|---|---|
| Actuator Diameter [diameter] | 1.57 mm |
| Actuator Diameter [diameter] | 0.062 in |
| Color | Black |
| For Use With/Related Products | Multiple Series |
| Ingress Protection | IP66/IP68 |
| Material | Silicone Rubber |
| Mounting Feature | Front of Panel |
| Operating Temperature [Max] | 204 °C |
| Operating Temperature [Min] | -70 °C |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Thread Size | 1/4-40 NS-2B |
| Type | Full Boot, Toggle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.86 | |
| 10 | $ 3.76 | |||
| 25 | $ 3.70 | |||
| 50 | $ 3.65 | |||
| 100 | $ 3.60 | |||
| 250 | $ 3.55 | |||
| 500 | $ 3.45 | |||
| 1000 | $ 2.94 | |||
Description
General part information
N5030 Series

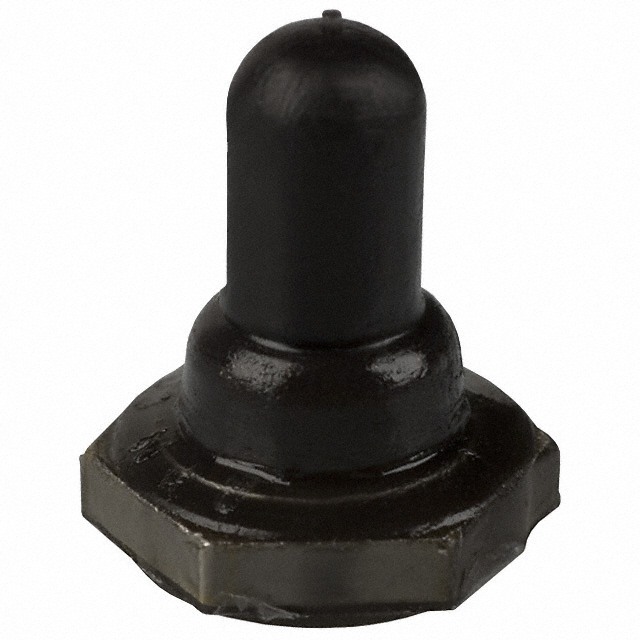

TOGGLE FULL BOOT BLACK
