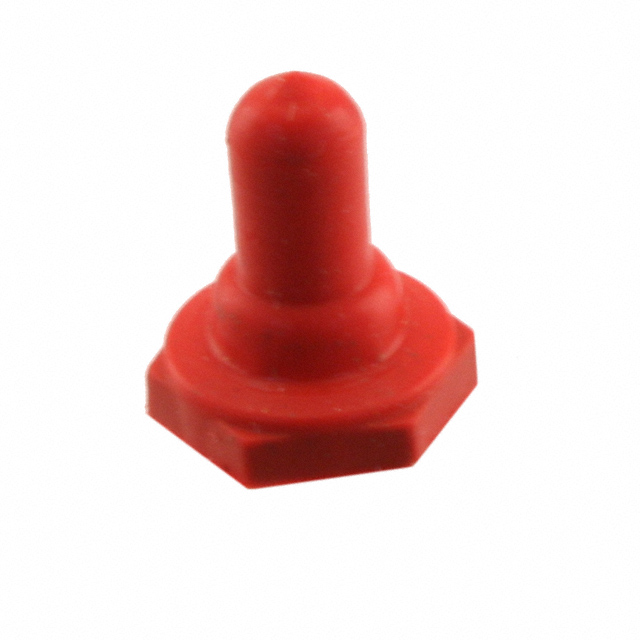

N5030L 53

Active

APM HEXSEAL

TOGGLE FULL BOOT RED

Search across all available documentation for this part.

Active

APM HEXSEAL

TOGGLE FULL BOOT RED

Technical Specifications

Parameters and characteristics for this part

Specification	N5030L 53

Actuator Diameter [diameter]	1.57 mm
Actuator Diameter [diameter]	0.062 in
Color	Red
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Thread Size	1/4-40 NS-2B
Type	Full Boot, Toggle

Part	Ingress Protection	Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Size / Dimension [z]	Size / Dimension [z]	Type	Mounting Feature	Thread Size	For Use With/Related Products	Features
APM HEXSEAL N5030L 17	IP66/IP68	Silicone Rubber	Black	204 °C	-70 °C	1.57 mm	0.062 in	0.5 in	12.7 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series
APM HEXSEAL N5030S RFI	IP66/IP68	Silicone Rubber	Gray	204 °C	-70 °C	1.57 mm	0.062 in	0.594 in	15.09 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series	Shielded
APM HEXSEAL N5030L 1	IP66/IP68	Silicone Rubber	Gray	204 °C	-70 °C	1.57 mm	0.062 in	0.5 in	12.7 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series
APM HEXSEAL N5030 1	IP66/IP68	Silicone Rubber	Gray	204 °C	-70 °C	2.64 mm	0.104 in	0.422 in	10.72 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series
APM HEXSEAL N5030L RFI 2	IP66/IP68	Silicone Rubber	Gray	204 °C	-70 °C	1.57 mm	0.062 in	0.5 in	12.7 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series	Shielded
APM HEXSEAL N5030S 1	IP66/IP68	Silicone Rubber	Gray	204 °C	-70 °C	1.57 mm	0.062 in	0.594 in	15.09 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series
APM HEXSEAL N5030L 53	IP66/IP68	Silicone Rubber	Red	204 °C	-70 °C	1.57 mm	0.062 in	0.5 in	12.7 mm	Full Boot Toggle	Front of Panel	1/4-40 NS-2B	Multiple Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TOGGLE FULL BOOT RED
