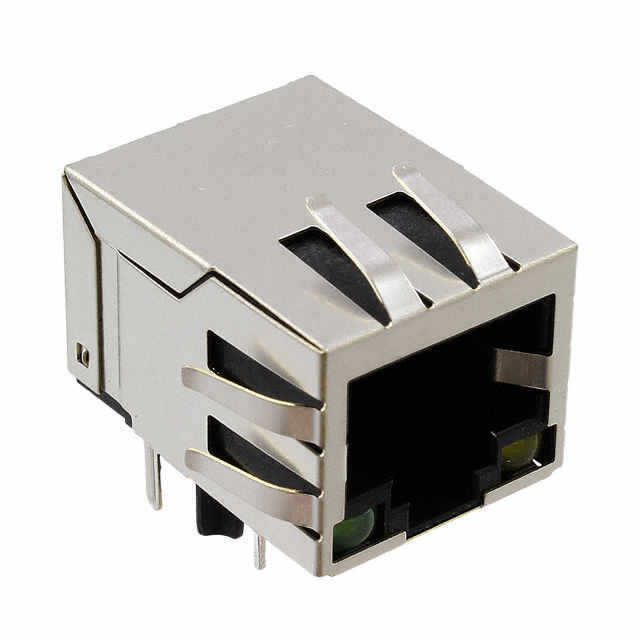

A63-113-331P422

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Part	Shield Material	Contact Finish	Connector Type	Shielding	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Number of Rows	Height Above Board	Height Above Board	Tab Direction	Termination	Orientation	Applications
EDAC Inc. A63-113-331P422	Copper Alloy	Gold	RJ45	Shielded EMI Finger	Copper Alloy	Thermoplastic	70 °C	0 °C	Green Yellow	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-300P13B		Gold	RJ45	Shielded		Polybutylene Terephthalate (PBT) Polyester			Does Not Contain LED	Through Hole	15 µin	0.38 µm	1	1			Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-300P422	Copper Alloy	Gold	RJ45	Shielded EMI Finger	Copper Alloy	Thermoplastic	70 °C	0 °C	Does Not Contain LED	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-331P4D2		Gold	RJ45	Shielded EMI Finger		Polybutylene Terephthalate (PBT) Polyester			Green Yellow	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-231N435	Copper Alloy	Gold	RJ45	Shielded EMI Finger	Copper Alloy	Thermoplastic	70 °C	0 °C	Green Yellow	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Up	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-300P131		Gold	RJ45	Shielded		Polybutylene Terephthalate (PBT) Polyester			Does Not Contain LED	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1200	$ 5.01

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
