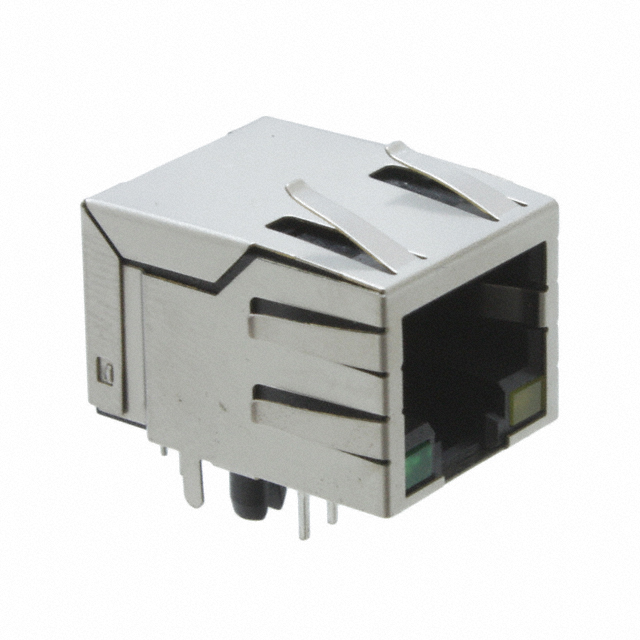

A63-113-331P4D2

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Search across all available documentation for this part.

Active

EDAC Inc.

CONN JACK 1PORT 100 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

Specification	A63-113-331P4D2

Applications	10/100 Base-T, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Height Above Board	0.531 in
Height Above Board	13.49 mm
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Rows	1
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Shield Material	Contact Finish	Connector Type	Shielding	Contact Material	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Number of Rows	Height Above Board	Height Above Board	Tab Direction	Termination	Orientation	Applications
EDAC Inc. A63-113-331P422	Copper Alloy	Gold	RJ45	Shielded EMI Finger	Copper Alloy	Thermoplastic	70 °C	0 °C	Green Yellow	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-300P13B		Gold	RJ45	Shielded		Polybutylene Terephthalate (PBT) Polyester			Does Not Contain LED	Through Hole	15 µin	0.38 µm	1	1			Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-300P422	Copper Alloy	Gold	RJ45	Shielded EMI Finger	Copper Alloy	Thermoplastic	70 °C	0 °C	Does Not Contain LED	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-331P4D2		Gold	RJ45	Shielded EMI Finger		Polybutylene Terephthalate (PBT) Polyester			Green Yellow	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-231N435	Copper Alloy	Gold	RJ45	Shielded EMI Finger	Copper Alloy	Thermoplastic	70 °C	0 °C	Green Yellow	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Up	Solder	90 °	10/100 Base-T AutoMDIX
EDAC Inc. A63-113-300P131		Gold	RJ45	Shielded		Polybutylene Terephthalate (PBT) Polyester			Does Not Contain LED	Through Hole	15 µin	0.38 µm	1	1	0.531 in	13.49 mm	Down	Solder	90 °	10/100 Base-T AutoMDIX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
