XM3L-0912-02N
ActiveOmron Electronics Inc-EMC Div

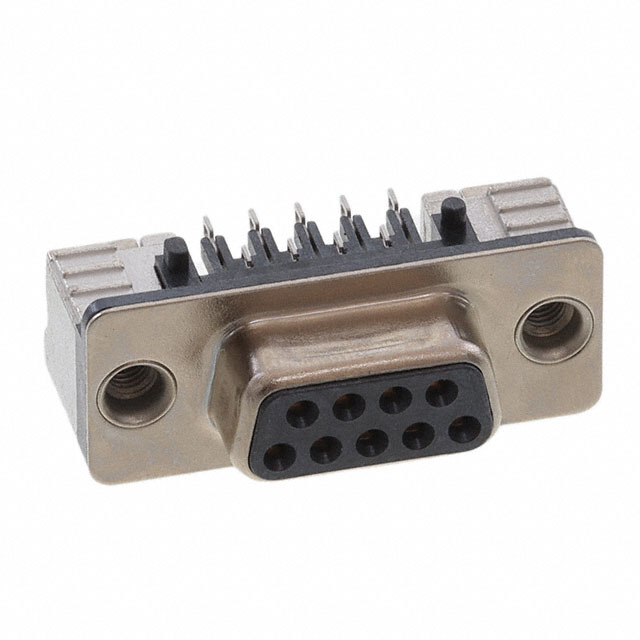

CONN D-SUB RCPT 9P SMD R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XM3L-0912-02N
ActiveOmron Electronics Inc-EMC Div
CONN D-SUB RCPT 9P SMD R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XM3L-0912-02N |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Features | Shielded, Board Guide |
| Flange Feature | Housing/Shell (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 300 VAC |
