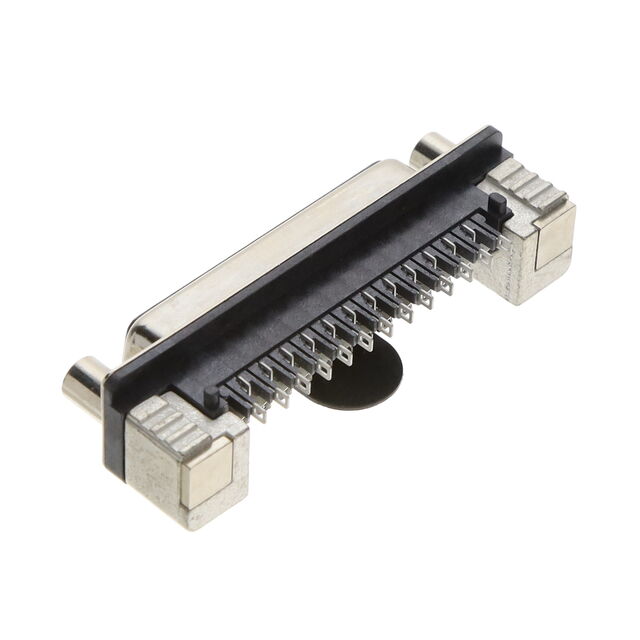

XM3L-2512-12N

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 25P SMD R/A SLDR

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN D-SUB RCPT 25P SMD R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	XM3L-2512-12N

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Liquid Crystal Polymer (LCP)
Features	Shielded, Board Guide
Flange Feature	Female Screwlock (M3), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	300 VAC

Part	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Connector Type	Mounting Type	Material Flammability Rating	Number of Rows	Color	Dielectric Material	Contact Type	Shell Material, Finish	Connector Style	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Material	Current Rating (Amps)	Number of Positions
Omron Electronics Inc-EMC Div XM3L-2512-13N	Board Guide Shielded	B DB	3	300 VAC	Receptacle Female Sockets	Surface Mount Right Angle	UL94 V-0	2	Black	Liquid Crystal Polymer (LCP)	Signal	Nickel Plated Steel	D-Sub	Gold	Solder	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Copper Alloy	3 A
Omron Electronics Inc-EMC Div XM3L-0912-13N	Board Guide Shielded	DE E	1	300 VAC	Receptacle Female Sockets	Surface Mount Right Angle	UL94 V-0	2	Black	Liquid Crystal Polymer (LCP)	Signal	Nickel Plated Steel	D-Sub	Gold	Solder	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	Copper Alloy	3 A	9
Omron Electronics Inc-EMC Div XM3L-2512-12N	Board Guide Shielded	B DB	3	300 VAC	Receptacle Female Sockets	Surface Mount Right Angle	UL94 V-0	2	Black	Liquid Crystal Polymer (LCP)	Signal	Nickel Plated Steel	D-Sub	Gold	Solder	105 ░C	-55 °C	Female Screwlock (M3) Mating Side	Copper Alloy	3 A
Omron Electronics Inc-EMC Div XM3L-0912-02N	Board Guide Shielded	DE E	1	300 VAC	Receptacle Female Sockets	Surface Mount Right Angle	UL94 V-0	2	Black	Liquid Crystal Polymer (LCP)	Signal	Nickel Plated Steel	D-Sub	Gold	Solder	105 ░C	-55 °C	Housing/Shell (M3)	Copper Alloy	3 A	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Sub Receptacle, Female Sockets Connector
