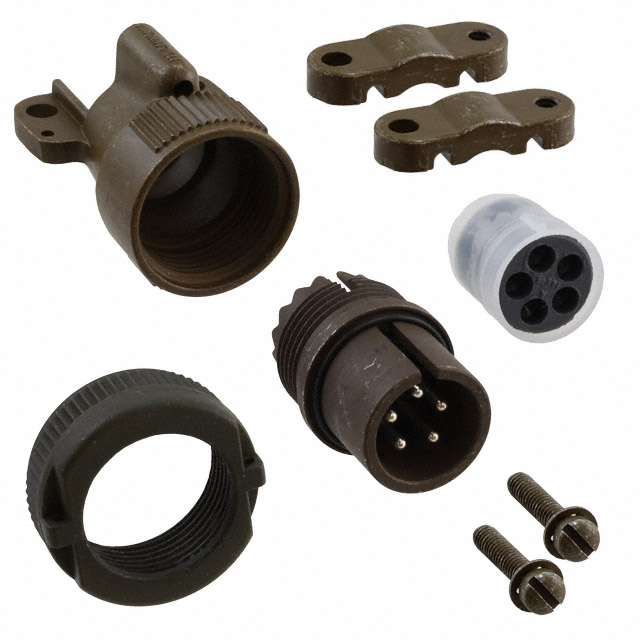

MS3106F14S-5P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 5P SILV SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106F14S-5P
ActiveAmphenol Industrial Operations
CONN PLUG MALE 5P SILV SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106F14S-5P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [custom] | 10.3 mm |
| Cable Opening [custom] | 0.406 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 14S-5 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.75 | |
| 1 | $ 44.12 | |||
| 10 | $ 38.63 | |||
| 10 | $ 39.19 | |||
| 25 | $ 36.96 | |||
| 25 | $ 37.49 | |||
| 50 | $ 36.28 | |||
| 50 | $ 35.77 | |||
| 100 | $ 34.58 | |||
| 100 | $ 35.07 | |||
| 250 | $ 33.14 | |||
| 250 | $ 32.67 | |||
Description
General part information
MS3106F14 Series
5 Position Circular Connector Plug, Male Pins Solder Cup
