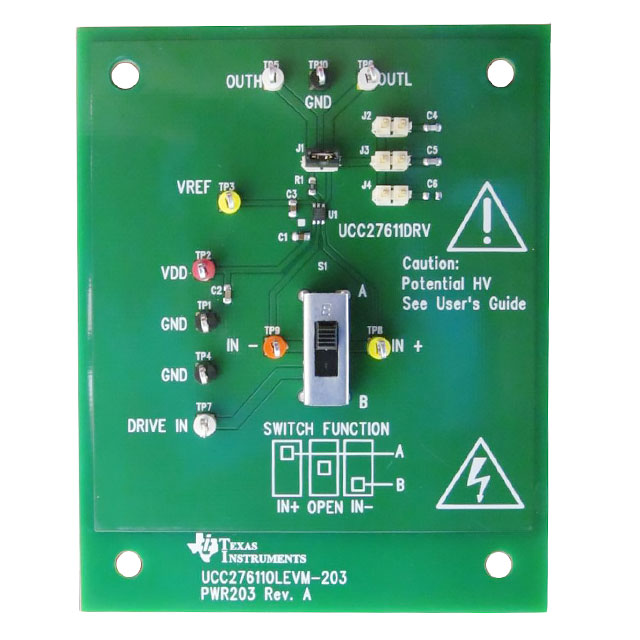

UCC27611OLEVM-203

Active

Texas Instruments

EVALUATION BOARD FOR UCC27611

Search across all available documentation for this part.

Active

Texas Instruments

EVALUATION BOARD FOR UCC27611

Technical Specifications

Parameters and characteristics for this part

Part	Function	Utilized IC / Part	Supplied Contents	Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Gate Type	Input Type	Channel Type	Mounting Type	Driven Configuration	Logic Voltage - VIL, VIH	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]
Texas Instruments UCC27611OLEVM-203	Gate Driver	UCC27611	Board(s)	Power Management
Texas Instruments UCC27611DRVT					6 A	4 A	1	N-Channel MOSFET	Inverting Non-Inverting	Single	Surface Mount	Low-Side	1.3 V 1.85 V	4 V	18 V	6-WSON (2x2)	-40 °C	140 °C
Texas Instruments UCC27611DRVR					6 A	4 A	1	N-Channel MOSFET	Inverting Non-Inverting	Single	Surface Mount	Low-Side	1.3 V 1.85 V	4 V	18 V	6-WSON (2x2)	-40 °C	140 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 58.80

General part information

UCC27611 Gate Driver Power Management Evaluation Board
