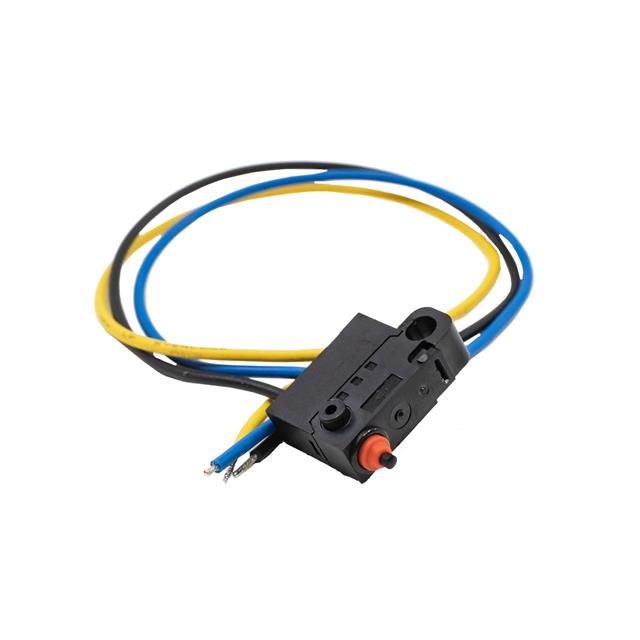

WS10850100F130WA

Active

E-Switch

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Ingress Protection	Operating Force	Mechanical Life	Circuit	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Actuator Type	Electrical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]
E-Switch WS10850100F130WA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	48 V	100 mA	Wire Leads	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C
E-Switch WS10850100F130SA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	48 V	100 mA	Solder Lug	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C
E-Switch WS1085300F130WA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	12 V	3 A	Wire Leads	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C
E-Switch WS1085300F130SA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	12 V	3 A	Solder Lug	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Panel Mount

Technical documentation and resources

No documents available
