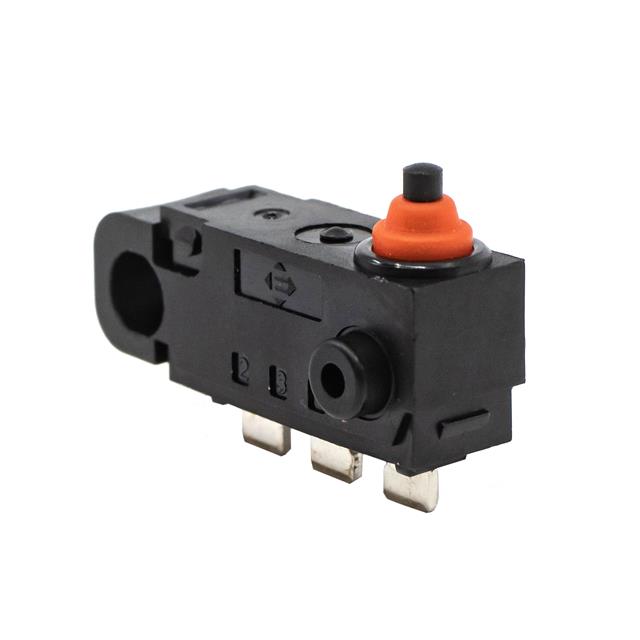

WS1085300F130SA

Active

E-Switch

SWITCH SNAP ACTION SPDT 3A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Switch Function	Ingress Protection	Operating Force	Mechanical Life	Circuit	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Actuator Type	Electrical Life	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]
E-Switch WS10850100F130WA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	48 V	100 mA	Wire Leads	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C
E-Switch WS10850100F130SA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	48 V	100 mA	Solder Lug	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C
E-Switch WS1085300F130WA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	12 V	3 A	Wire Leads	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C
E-Switch WS1085300F130SA	On-On	IP67 - Dust Tight Waterproof	130 gf	500000 Cycles	SPDT	12 V	3 A	Solder Lug	Round (Pin Plunger)	100000 Cycles	125 V	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Panel Mount
