880-70-007-10-001101

Active

PRECI-DIP SA

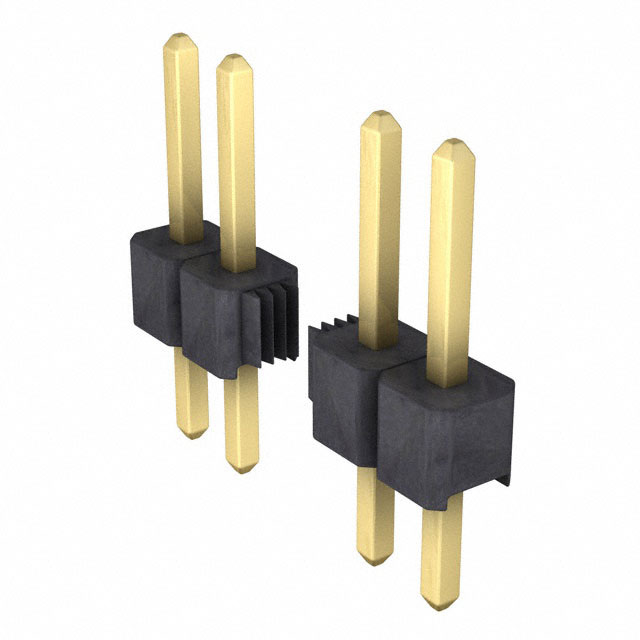

CONN HEADER VERT 7POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

880-70-007-10-001101

Active

PRECI-DIP SA

CONN HEADER VERT 7POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	880-70-007-10-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.8 mm
Overall Contact Length	0.346 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

880-70 Series

Part	Contact Finish Thickness - Mating	Number of Rows	Contact Length - Mating	Contact Length - Mating	Fastening Type	Material Flammability Rating	Number of Positions Loaded	Contact Shape	Connector Type	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Shrouding	Contact Finish - Post	Insulation Color	Mounting Type	Contact Length - Post [x]	Contact Length - Post	Termination	Contact Material	Contact Finish Thickness - Post	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Number of Positions
PRECI-DIP SA 880-70-017-10-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold	8.8 mm	0.346 in	Unshrouded	Gold	Black	Through Hole	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin
PRECI-DIP SA 880-70-023-20-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold			Unshrouded	Gold	Black	Through Hole Right Angle	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	23
PRECI-DIP SA 880-70-014-20-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold			Unshrouded	Gold	Black	Through Hole Right Angle	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	14
PRECI-DIP SA 880-70-011-20-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold			Unshrouded	Gold	Black	Through Hole Right Angle	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	11
PRECI-DIP SA 880-70-024-20-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold			Unshrouded	Gold	Black	Through Hole Right Angle	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	24
PRECI-DIP SA 880-70-007-10-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold	8.8 mm	0.346 in	Unshrouded	Gold	Black	Through Hole	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	7
PRECI-DIP SA 880-70-031-20-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold			Unshrouded	Gold	Black	Through Hole Right Angle	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	31
PRECI-DIP SA 880-70-014-10-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold	8.8 mm	0.346 in	Unshrouded	Gold	Black	Through Hole	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin	14
PRECI-DIP SA 880-70-016-10-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold	8.8 mm	0.346 in	Unshrouded	Gold	Black	Through Hole	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin		16
PRECI-DIP SA 880-70-025-20-001101	Flash	1	4 mm	0.157 in	Push-Pull	UL94 V-0	All	Square	Header	Gold			Unshrouded	Gold	Black	Through Hole Right Angle	0.11 in	2.79 mm	Solder	Brass	Flash	Glass Filled Nylon Polyamide (PA)	150 VDC	0.079 in	2 mm	0.079 in	2 mm	-55 °C	125 °C	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2140	$ 0.30

Description

General part information

880-70 Series

Connector Header Through Hole 7 position 0.079" (2.00mm)
