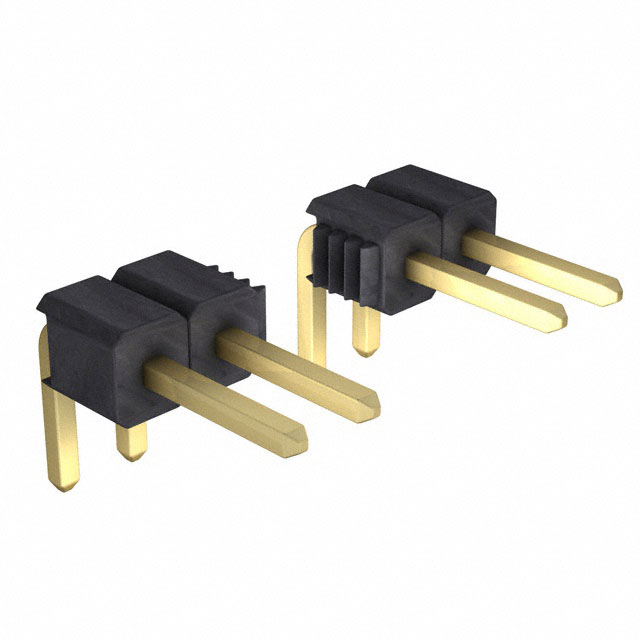

880-70-011-20-001101
ActivePRECI-DIP SA
CONN HEADER R/A 11POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
880-70-011-20-001101
ActivePRECI-DIP SA
CONN HEADER R/A 11POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 880-70-011-20-001101 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 4 mm |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Nylon, Polyamide (PA), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 11 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
| Voltage Rating | 150 VDC |
880-70 Series
| Part | Contact Finish Thickness - Mating | Number of Rows | Contact Length - Mating | Contact Length - Mating | Fastening Type | Material Flammability Rating | Number of Positions Loaded | Contact Shape | Connector Type | Contact Finish - Mating | Overall Contact Length | Overall Contact Length | Shrouding | Contact Finish - Post | Insulation Color | Mounting Type | Contact Length - Post [x] | Contact Length - Post | Termination | Contact Material | Contact Finish Thickness - Post | Insulation Material | Voltage Rating | Insulation Height | Insulation Height | Pitch - Mating [x] | Pitch - Mating [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | 8.8 mm | 0.346 in | Unshrouded | Gold | Black | Through Hole | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | ||
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | Unshrouded | Gold | Black | Through Hole Right Angle | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 23 | |||
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | Unshrouded | Gold | Black | Through Hole Right Angle | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 14 | |||
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | Unshrouded | Gold | Black | Through Hole Right Angle | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 11 | |||
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | Unshrouded | Gold | Black | Through Hole Right Angle | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 24 | |||
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | 8.8 mm | 0.346 in | Unshrouded | Gold | Black | Through Hole | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 7 | |
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | Unshrouded | Gold | Black | Through Hole Right Angle | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 31 | |||
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | 8.8 mm | 0.346 in | Unshrouded | Gold | Black | Through Hole | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 14 | |
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | 8.8 mm | 0.346 in | Unshrouded | Gold | Black | Through Hole | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin | 16 | |
PRECI-DIP SA | Flash | 1 | 4 mm | 0.157 in | Push-Pull | UL94 V-0 | All | Square | Header | Gold | Unshrouded | Gold | Black | Through Hole Right Angle | 0.11 in | 2.79 mm | Solder | Brass | Flash | Glass Filled Nylon Polyamide (PA) | 150 VDC | 0.079 in | 2 mm | 0.079 in | 2 mm | -55 °C | 125 °C | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 950 | $ 0.68 | |
Description
General part information
880-70 Series
Connector Header Through Hole, Right Angle 11 position 0.079" (2.00mm)
