ADH700-48S28-6L

Active

ARTESYN / Advanced Energy

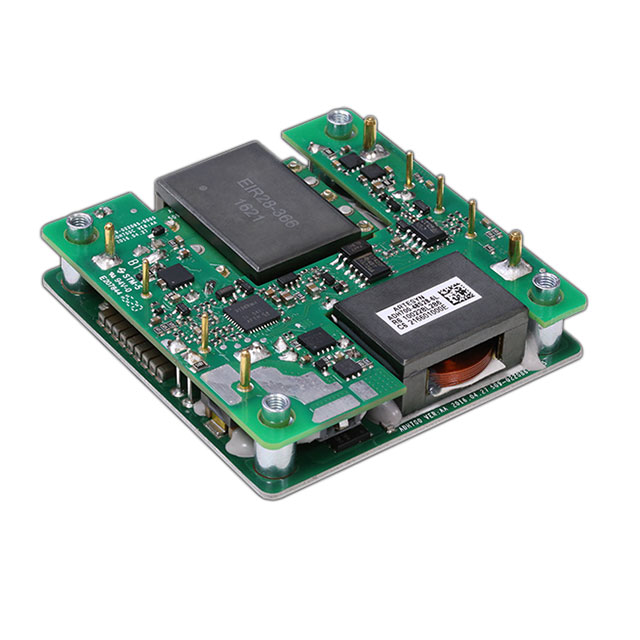

MODULE DC-DC 48VIN 1-OUT 28V 25A 700W 9-PIN HALF-BRICK

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

MODULE DC-DC 48VIN 1-OUT 28V 25A 700W 9-PIN HALF-BRICK

Technical Specifications

Parameters and characteristics for this part

Specification	ADH700-48S28-6L

Applications	ITE (Commercial)
Current - Output (Max) [Max]	25 A
Efficiency	95 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	9-DIP Module, 1/2 Brick
Power (Watts)	700 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	2.28 in
Size / Dimension [y]	57.9 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	65 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	28 V

Isolated DC/DC Converters - Through Hole 700W 36-75Vin 50V@14A Half Brick

Part	Package / Case	Applications	Type	Mounting Type	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Efficiency	Supplier Device Package	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features
ARTESYN / Advanced Energy ADH700-48S50-6L	Half Brick	ITE (Commercial)	Isolated Module	Through Hole	36 V	1	50 V	2250 VDC	65 V	85 °C	-40 °C	14 A	94.8 %	Half Brick	700 W	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm
ARTESYN / Advanced Energy ADH700-48S28-6L	9-DIP Module 1/2 Brick	ITE (Commercial)	Isolated Module	Through Hole	36 V	1	28 V	1.5 kV	65 V	85 °C	-40 °C	25 A	95 %	Half Brick	700 W	2.4 in	0.5 in	2.28 in	12.7 mm	57.9 mm	61 mm	OCP OTP OVP Remote On/Off SCP UVLO
