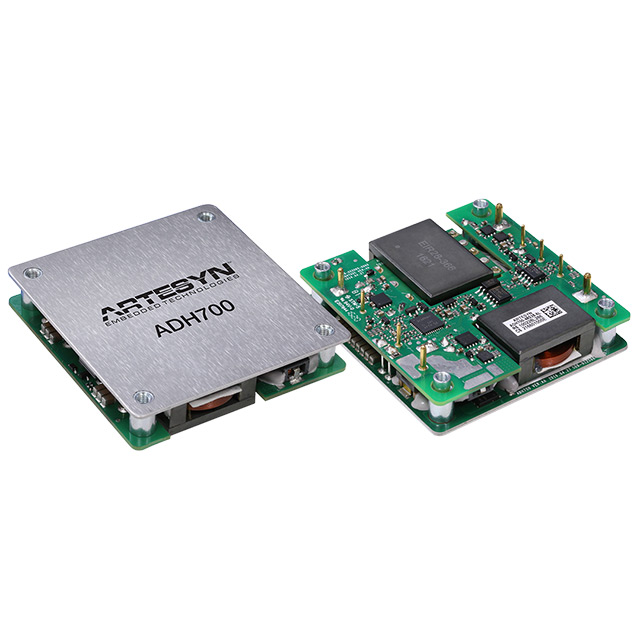

ADH700-48S50-6L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 50V 700W
Deep-Dive with AI
Search across all available documentation for this part.
ADH700-48S50-6L
ActiveARTESYN / Advanced Energy
DC DC CONVERTER 50V 700W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADH700-48S50-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 14 A |
| Efficiency | 94.8 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Half Brick |
| Power (Watts) | 700 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.28 in |
| Size / Dimension [y] | 57.9 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Supplier Device Package | Half Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 65 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 136.58 | |
| 5 | $ 135.50 | |||
| 10 | $ 134.41 | |||
| 25 | $ 125.74 | |||
| 40 | $ 121.41 | |||
Description
General part information
ADH700 Series
Isolated DC/DC Converters - Through Hole 700W 36-75Vin 50V@14A Half Brick
