M1BXA-3036J

Active

3M (TC)

IDC CABLE - MSR30A/MC34G/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet 891 Series Datasheet +1

M1BXA-3036J

Active

3M (TC)

IDC CABLE - MSR30A/MC34G/X

Deep-Dive with AI

Documents3365 Series Datasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1BXA-3036J

Cable Termination	IDC
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	30
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1BXA Series

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Number of Rows	Cable Termination	Features	Length [x]	Length [x]	Contact Finish	Shielding	Connector Type	Color
3M (TC) M1BXA-4036J	40	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable
3M (TC) M1BXA-1036J	10	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable
3M (TC) M1BXA-4036R	40	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable	Multiple Ribbon
3M (TC) M1BXA-3436R	34	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable	Multiple Ribbon
3M (TC) M1BXA-3036J	30	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable
3M (TC) M1BXA-5036R	50	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable	Multiple Ribbon
3M (TC) M1BXA-1436R	14	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3 ft	914.4 mm	Gold	Unshielded	Socket to Cable	Multiple Ribbon
3M (TC) M1BXA-3440K	34	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3.34 ft	1.02 m	Gold	Unshielded	Socket to Cable	Multiple Twisted Pair (Flat)
3M (TC) M1BXA-2640K	26	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3.34 ft	1.02 m	Gold	Unshielded	Socket to Cable	Multiple Twisted Pair (Flat)
3M (TC) M1BXA-1040K	10	0.76 Ám	30 Áin	0.1 in	2.54 mm	0.05 "	1.27 mm	2	IDC	Strain Relief	3.34 ft	1.02 m	Gold	Unshielded	Socket to Cable	Multiple Twisted Pair (Flat)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.41
		10	$ 8.76
		25	$ 7.92
		50	$ 7.34
		100	$ 6.82
		250	$ 6.21
		500	$ 5.80
		1000	$ 5.42

Description

General part information

M1BXA Series

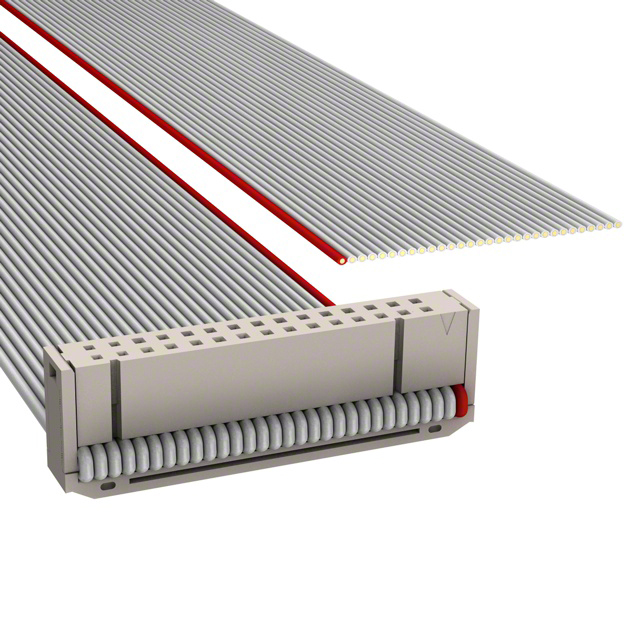

30 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

891 Series Datasheet

Datasheet
