M1BXA-4036R
Active3M (TC)
IDC CABLE - MSR40A/MC40M/X
Deep-Dive with AI
Search across all available documentation for this part.
M1BXA-4036R
Active3M (TC)
IDC CABLE - MSR40A/MC40M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1BXA-4036R |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Strain Relief |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M1BXA Series
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Pitch - Cable | Pitch - Cable | Number of Rows | Cable Termination | Features | Length [x] | Length [x] | Contact Finish | Shielding | Connector Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 40 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | |
3M (TC) | 10 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | |
3M (TC) | 40 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | Multiple Ribbon |
3M (TC) | 34 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | Multiple Ribbon |
3M (TC) | 30 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | |
3M (TC) | 50 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | Multiple Ribbon |
3M (TC) | 14 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3 ft | 914.4 mm | Gold | Unshielded | Socket to Cable | Multiple Ribbon |
3M (TC) | 34 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3.34 ft | 1.02 m | Gold | Unshielded | Socket to Cable | Multiple Twisted Pair (Flat) |
3M (TC) | 26 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3.34 ft | 1.02 m | Gold | Unshielded | Socket to Cable | Multiple Twisted Pair (Flat) |
3M (TC) | 10 | 0.76 Ám | 30 Áin | 0.1 in | 2.54 mm | 0.05 " | 1.27 mm | 2 | IDC | Strain Relief | 3.34 ft | 1.02 m | Gold | Unshielded | Socket to Cable | Multiple Twisted Pair (Flat) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.90 | |
| 10 | $ 13.00 | |||
| 25 | $ 11.76 | |||
| 50 | $ 10.92 | |||
| 100 | $ 10.16 | |||
| 250 | $ 9.26 | |||
| 500 | $ 8.65 | |||
| 1000 | $ 8.11 | |||
Description
General part information
M1BXA Series

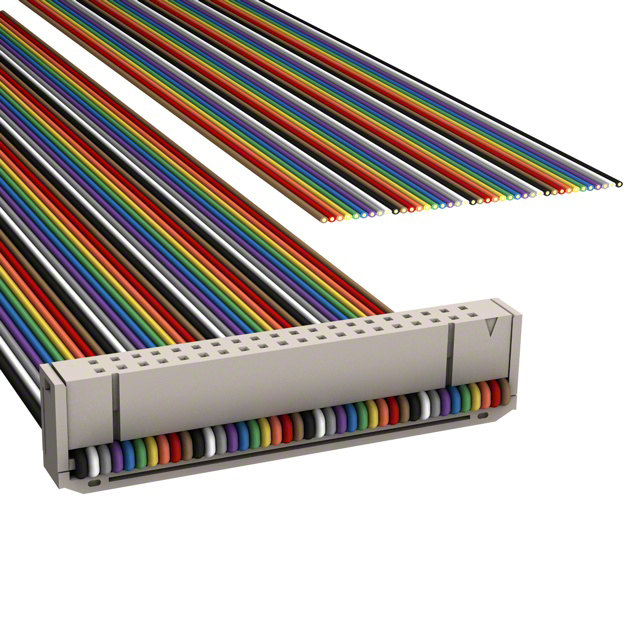

40 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
