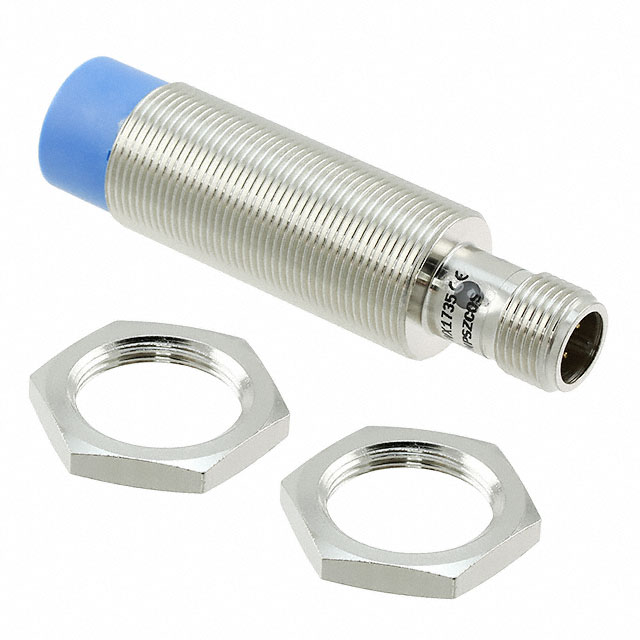

IME18-12NPSZC0S

Active

SICK, Inc.

INDUCTIVE PROXIMITY SENSOR, 12 MM, PNP, M18 X 1, 10 TO 30 VDC, 4 PIN M12 MALE CONNECTOR, IME SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IME18-12NPSZC0S

Active

SICK, Inc.

INDUCTIVE PROXIMITY SENSOR, 12 MM, PNP, M18 X 1, 10 TO 30 VDC, 4 PIN M12 MALE CONNECTOR, IME SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IME18-12NPSZC0S

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M18
Response Frequency	1 kHz
Sensing Distance	0.472 in
Sensing Distance	12 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IME18 Series

Part	Sensor Type	Response Frequency	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Shielding	Indicator [custom]	Termination Style	Package / Case	Ingress Protection	Material - Body	Voltage - Supply [Max]	Voltage - Supply [Min]
SICK, Inc. 1054018	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NO 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-08BPOZC0K	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NC 3-Wire	Shielded	LED	Connector	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-12NDOZC0S	Inductive	1 kHz	0.472 in	12 mm	-25 °C	75 °C	NC 2-Wire	Shielded	LED	Connector	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040963	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	NPN-NC 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040975	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	NPN-NO 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040956	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NC 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-05BNSZC0K	Inductive	1 kHz	0.197 in	5 mm	-25 °C	75 °C	NPN-NO 3-Wire	Shielded	LED	Connector	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040976	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	NPN-NO 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040955	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NC 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-12NPSZC0S	Inductive	1 kHz	0.472 in	12 mm	-25 °C	75 ░C	PNP-NO 3-Wire	Unshielded	LED	Connector	Cylinder Threaded - M18	IP67	Nickel-Plated Brass	30 VDC	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.89
		10	$ 52.12
		100	$ 47.23
Newark	Each	1	$ 65.01
		5	$ 61.76
		10	$ 60.46
		25	$ 59.16
		50	$ 57.86

Description

General part information

IME18 Series

IME18-12NPSZC0S is an IME series inductive proximity sensor. It offers precise detection, less downtime, and a long service life. The inductive IME sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
