1040976

Active

SICK, Inc.

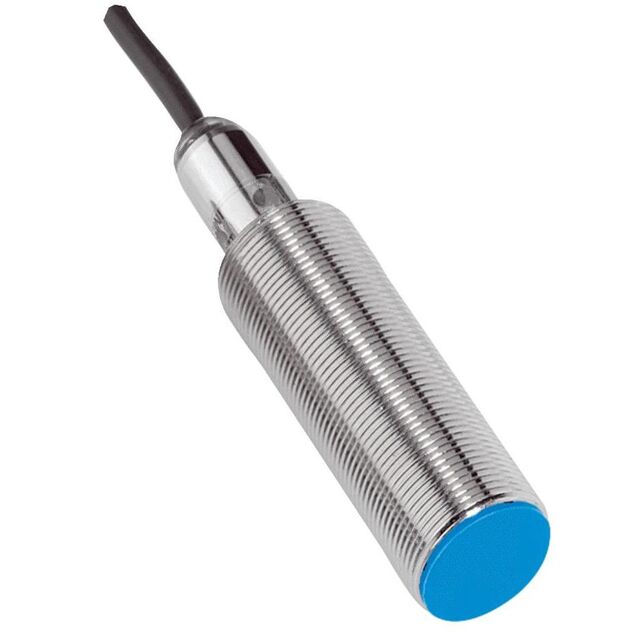

SENSOR PROX INDUC 8MM CYL 2M CBL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1040976

Active

SICK, Inc.

SENSOR PROX INDUC 8MM CYL 2M CBL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1040976

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Plastic
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-25 °C
Output Type	NPN-NO, 3-Wire
Package / Case	Cylinder, Threaded - M18
Response Frequency	1 kHz
Sensing Distance	0.315 in
Sensing Distance	8 mm
Sensor Type	Inductive
Shielding	Shielded
Termination Style	Cable Leads
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IME18 Series

Part	Sensor Type	Response Frequency	Sensing Distance	Sensing Distance	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Shielding	Indicator [custom]	Termination Style	Package / Case	Ingress Protection	Material - Body	Voltage - Supply [Max]	Voltage - Supply [Min]
SICK, Inc. 1054018	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NO 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-08BPOZC0K	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NC 3-Wire	Shielded	LED	Connector	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-12NDOZC0S	Inductive	1 kHz	0.472 in	12 mm	-25 °C	75 °C	NC 2-Wire	Shielded	LED	Connector	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040963	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	NPN-NC 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040975	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	NPN-NO 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040956	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NC 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-05BNSZC0K	Inductive	1 kHz	0.197 in	5 mm	-25 °C	75 °C	NPN-NO 3-Wire	Shielded	LED	Connector	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040976	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	NPN-NO 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. 1040955	Inductive	1 kHz	0.315 in	8 mm	-25 °C	75 °C	PNP-NC 3-Wire	Shielded	LED	Cable Leads	Cylinder Threaded - M18	IP67	Plastic	30 VDC	10 VDC
SICK, Inc. IME18-12NPSZC0S	Inductive	1 kHz	0.472 in	12 mm	-25 °C	75 ░C	PNP-NO 3-Wire	Unshielded	LED	Connector	Cylinder Threaded - M18	IP67	Nickel-Plated Brass	30 VDC	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.75
		5	$ 49.60
		10	$ 48.05
		25	$ 46.20
		50	$ 44.93
		100	$ 43.77

Description

General part information

IME18 Series

SENSOR PROX INDUC 8MM CYL 2M CBL

Documents

Technical documentation and resources
