DMA80I1600HA
ActiveIXYS
DIODE GEN PURP 1.6KV 80A TO247
Deep-Dive with AI
Search across all available documentation for this part.

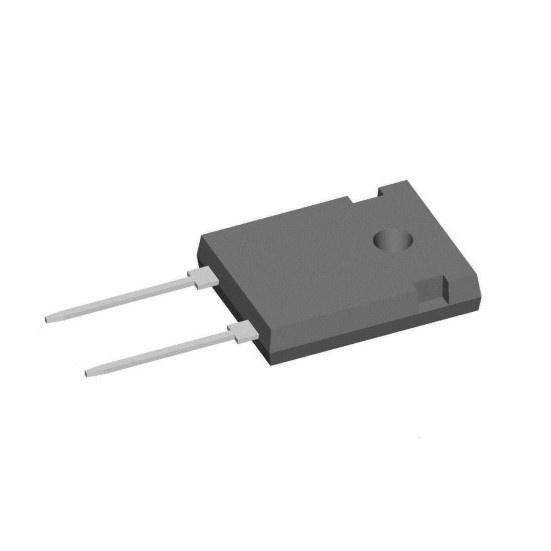

DMA80I1600HA
ActiveIXYS
DIODE GEN PURP 1.6KV 80A TO247
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMA80I1600HA |
|---|---|
| Capacitance @ Vr, F | 43 pF |
| Current - Average Rectified (Io) | 80 A |
| Current - Reverse Leakage @ Vr | 40 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | TO-247-2 |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | TO-247 |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.17 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.36 | |
| 30 | $ 4.24 | |||
| 120 | $ 3.64 | |||
| 510 | $ 3.23 | |||
| 1020 | $ 2.77 | |||
| 2010 | $ 2.61 | |||
Description
General part information
DMA80 Series
Diode 1600 V 80A Through Hole TO-247
Documents
Technical documentation and resources
No documents available
