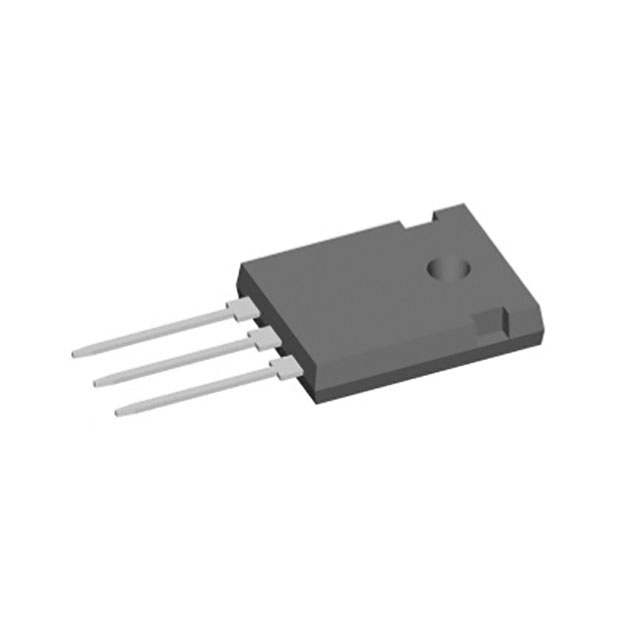

DMA80IM1600HB

Active

IXYS

DIODE GEN PURP 1.6KV 80A TO247

Search across all available documentation for this part.

Active

IXYS

DIODE GEN PURP 1.6KV 80A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	DMA80IM1600HB

Capacitance @ Vr, F	43 pF
Current - Average Rectified (Io)	80 A
Current - Reverse Leakage @ Vr	40 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-247-3
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	TO-247 (IXTH)
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.17 V

Part	Speed	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Capacitance @ Vr, F	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Technology	Supplier Device Package	Package / Case
IXYS DMA80IM1600HB	Standard Recovery >500ns	200 mA	150 °C	-55 °C	Through Hole	43 pF	80 A	40 µA	1.17 V	Standard	TO-247 (IXTH)	TO-247-3
IXYS DMA80I1600HA	Standard Recovery >500ns	200 mA	175 ░C	-55 C	Through Hole	43 pF	80 A	40 µA	1.17 V	Standard	TO-247	TO-247-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 1600 V 80A Through Hole TO-247 (IXTH)
