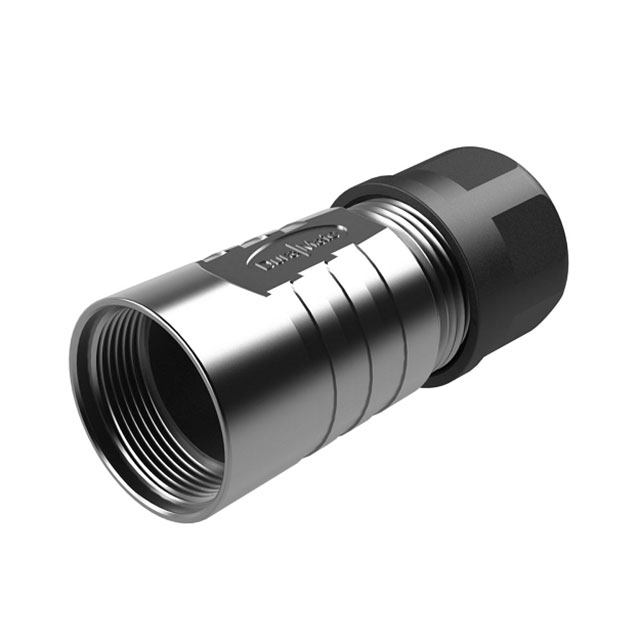

AHDMBS-18-SM01
ActiveAmphenol Sine Systems Corp
CONN BACKSHELL SZ18 BLK/SIL M32
Deep-Dive with AI
Search across all available documentation for this part.
AHDMBS-18-SM01
ActiveAmphenol Sine Systems Corp
CONN BACKSHELL SZ18 BLK/SIL M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDMBS-18-SM01 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [Max] [custom] | 0.63 in |
| Cable Opening [Max] [custom] | 16 mm |
| Cable Opening [Min] [custom] | 10 mm |
| Cable Opening [Min] [custom] | 0.394 in |
| Color | Black, Silver |
| Diameter - Outside [diameter] | 1.406 in |
| Diameter - Outside [diameter] | 35.71 mm |
| Includes | 1 Rubber Ring, 1 Compression Nut, 1 Cage Clamp, 1 Backshell, 2 O-Rings |
| Material | Aluminum Alloy |
| Plating | Nickel |
| Shell Size - Insert | 18 |
| Shielding | Unshielded |
| Thread Size | M32x1.5 |
| Type | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.73 | |
| 10 | $ 12.17 | |||
| 25 | $ 11.70 | |||
| 50 | $ 11.24 | |||
| 100 | $ 10.61 | |||
| 300 | $ 9.67 | |||
| 500 | $ 9.05 | |||
| 1000 | $ 8.30 | |||
Description
General part information
AHDMBS Series
Black, Silver Connector Backshell M32x1.5 18
