AHDMBS-24-059

Active

Amphenol Sine Systems Corp

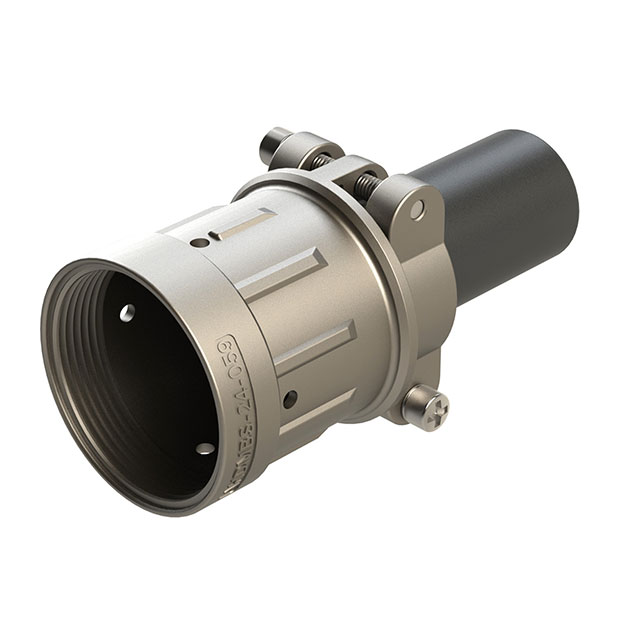

CONN BACKSHELL W/CLMP SZ24 SILV

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN BACKSHELL W/CLMP SZ24 SILV

Technical Specifications

Parameters and characteristics for this part

Specification	AHDMBS-24-059

Cable Exit	180 °
Cable Opening [Max] [custom]	0.948 in
Cable Opening [Max] [custom]	24.08 mm
Cable Opening [Min] [custom]	11.2 mm
Cable Opening [Min] [custom]	0.441 in
Color	Silver
Features	Clamp Screws, Bushing
Includes	1 Bushing, 2 Washers, 8 pcs - 1 Backshell, 2 Screws, 2 pc Cable Clamp
Material	Aluminum Alloy
Plating	Nickel
Shell Size - Insert	24
Shielding	Unshielded
Thread Size	M38x1.5
Type	Backshell, Cable Clamp

Part	Material	Thread Size	Cable Exit	Includes	Type	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Color	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Plating	Features	Diameter - Outside [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Amphenol Sine Systems Corp AHDMBS-24-002	Aluminum Alloy	M38x1.5	180 °	1 Backshell 1 Cage Clamp 1 Compression Nut	Backshell	Shielded	0.807 in 0.953 in	24.2 mm	20.5 mm	24	Black Silver	1.654 in	42 mm	Nickel	Strain Relief
Amphenol Sine Systems Corp AHDMBS-18-SM01	Aluminum Alloy	M32x1.5	180 °	1 Backshell 1 Cage Clamp 1 Compression Nut 1 Rubber Ring 2 O-Rings	Backshell	Unshielded				18	Black Silver		1.406 in	Nickel		35.71 mm	10 mm	0.63 in	0.394 in	16 mm
Amphenol Sine Systems Corp AHDMBS-24-SM01	Aluminum Alloy	M38x1.5	180 °	1 Backshell 1 Cage Clamp 1 Compression Nut 1 Rubber Ring 2 O-Rings	Backshell	Unshielded	0.472 in 0.709 in	18 mm	12 mm	24	Black Silver	1.642 in	41.71 mm	Nickel
Amphenol Sine Systems Corp AHDMBS-24-059	Aluminum Alloy	M38x1.5	180 °	1 Bushing 2 pc Cable Clamp 2 Screws 2 Washers 8 pcs - 1 Backshell	Backshell Cable Clamp	Unshielded				24	Silver			Nickel	Bushing Clamp Screws		11.2 mm	0.948 in	0.441 in	24.08 mm
