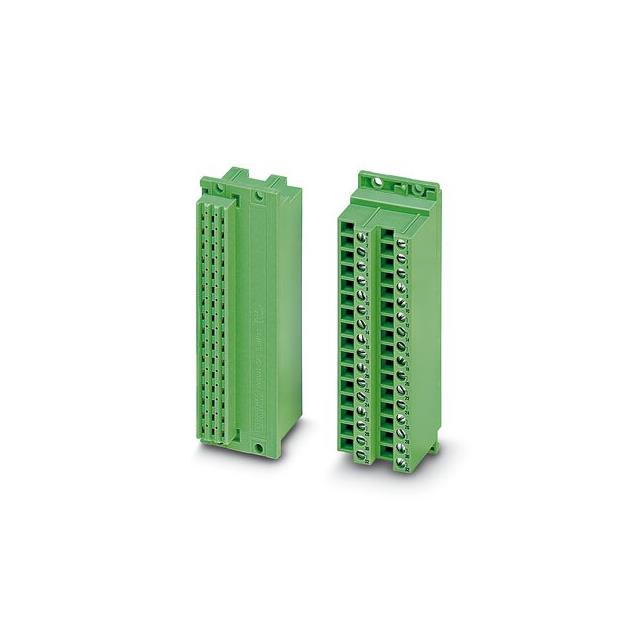

2285580

Active

Phoenix Contact

TERM BLOCK

Search across all available documentation for this part.

Active

Phoenix Contact

TERM BLOCK

Technical Specifications

Parameters and characteristics for this part

Specification	2285580

Convert From (Adapter End)	Terminal Blocks, 32 Pos, Screw Connection, 2 Rows
Convert To (Adapter End)	32 Pin, 2 Rows
Convert To (Adapter End)	Female Sockets, Rectangular Connector
Mounting Type	Feed Through, Panel Mount
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	12 AWG

Part	Convert To (Adapter End)	Wire Gauge [Min]	Wire Gauge [Max]	Convert From (Adapter End)	Mounting Type	Convert To (Adapter End)
Phoenix Contact 2285603	3 Rows 48 Pos Female Sockets Rectangular Connector	12 AWG	24 AWG	3 Rows 48 Pos Screw Connection Terminal Blocks	Free Hanging (In-Line) Panel Mount Flange
Phoenix Contact 2285580	Female Sockets Rectangular Connector	12 AWG	30 AWG	2 Rows 32 Pos Screw Connection Terminal Blocks	Feed Through Panel Mount	2 Rows 32 Pin
Phoenix Contact 2285577	Card Edge Connector	12 AWG	24 AWG	3 Rows 32 Pos Screw Connection Terminal Blocks	Feed Through Panel Mount	32 Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 184.76

General part information

Adapter Terminal Blocks, Screw Connection, 32 Pos, 2 Rows To Rectangular Connector, Female Sockets, 32 Pos, 2 Rows
