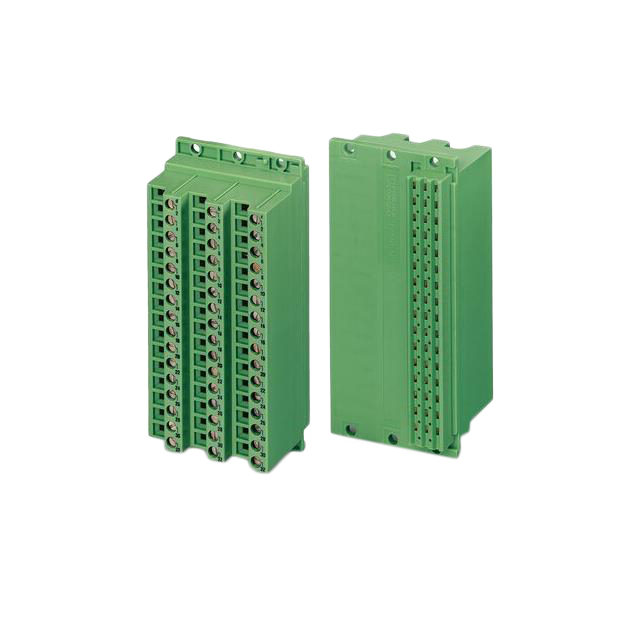

2285603
ActivePhoenix Contact
SOCKET STRIP 48POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2285603
ActivePhoenix Contact
SOCKET STRIP 48POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2285603 |
|---|---|
| Convert From (Adapter End) | Screw Connection, Terminal Blocks, 48 Pos, 3 Rows |
| Convert To (Adapter End) | Rectangular Connector, 48 Pos, 3 Rows, Female Sockets |
| Mounting Type | Panel Mount, Flange, Free Hanging (In-Line) |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 12 AWG |
FRONT-SFL Series
| Part | Convert To (Adapter End) | Wire Gauge [Min] | Wire Gauge [Max] | Convert From (Adapter End) | Mounting Type | Convert To (Adapter End) |
|---|---|---|---|---|---|---|
Phoenix Contact | 3 Rows 48 Pos Female Sockets Rectangular Connector | 12 AWG | 24 AWG | 3 Rows 48 Pos Screw Connection Terminal Blocks | Free Hanging (In-Line) Panel Mount Flange | |
Phoenix Contact | Female Sockets Rectangular Connector | 12 AWG | 30 AWG | 2 Rows 32 Pos Screw Connection Terminal Blocks | Feed Through Panel Mount | 2 Rows 32 Pin |
Phoenix Contact | Card Edge Connector | 12 AWG | 24 AWG | 3 Rows 32 Pos Screw Connection Terminal Blocks | Feed Through Panel Mount | 32 Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 277.15 | |
Description
General part information
FRONT-SFL Series
Adapter Terminal Blocks, Screw Connection, 48 Pos, 3 Rows To Rectangular Connector, Female Sockets, 48 Pos, 3 Rows
Documents
Technical documentation and resources
