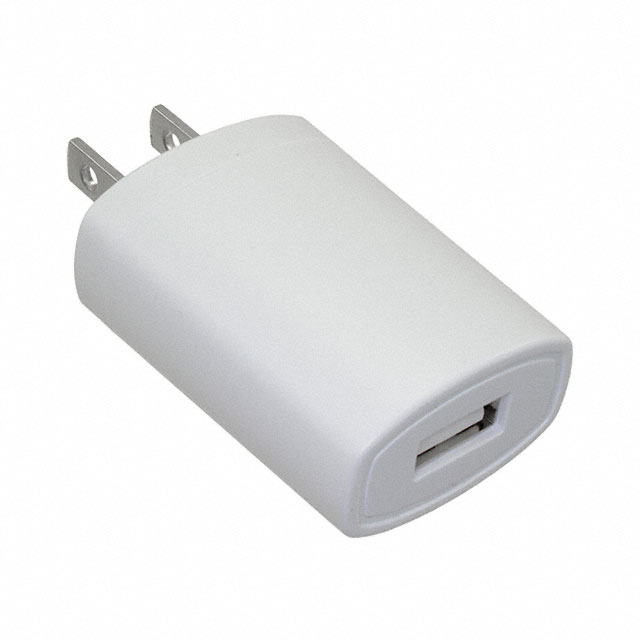

WR9HA1000USB-F(R6W)
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WR9HA1000USB-F(R6W)
ActiveGlobTek, Inc.
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WR9HA1000USB-F(R6W) |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, CB, cULus, LPS, VCCI |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Power (Watts) | 5 W |
| Region Utilized | North America |
| Size / Dimension [x] | 47.7 mm |
| Size / Dimension [x] | 1.88 in |
| Size / Dimension [y] | 1.42 in |
| Size / Dimension [y] | 36 mm |
| Size / Dimension [z] | 0.89 in |
| Size / Dimension [z] | 22.5 mm |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.86 | |
| 5 | $ 7.46 | |||
| 10 | $ 7.27 | |||
| 25 | $ 6.88 | |||
| 50 | $ 6.48 | |||
| 100 | $ 6.29 | |||
| 360 | $ 5.89 | |||
| 720 | $ 5.50 | |||
Description
General part information
WR9HA1000 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
