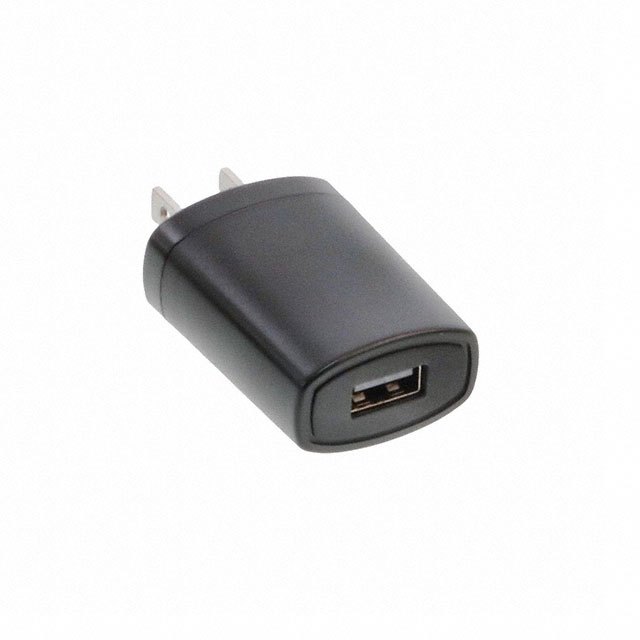

WR9HA1000USB-F(R6B)

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9HA1000USB-F(R6B)

Applications	ITE (Commercial)
Approval Agency	PSE, CB, cULus, LPS, VCCI
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	47.7 mm
Size / Dimension [x]	1.88 in
Size / Dimension [y]	1.42 in
Size / Dimension [y]	36 mm
Size / Dimension [z]	0.89 in
Size / Dimension [z]	22.5 mm
Standard Number	60950-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Input Type	Applications	Current - Output (Max) [Max]	Power (Watts)	Voltage - Output	Approval Agency	Input Connector	Region Utilized	Form	Efficiency	No Load Power Consumption [Max]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]
GlobTek, Inc. WR9HA1000USB-F(R6B)	Fixed Blade	ITE (Commercial)	1 A	5 W	5 V	CB cULus LPS PSE VCCI	NEMA 1-15P	North America	Wall Mount (Class II)	Level VI	75 mW	60950-1	90 VAC	264 VAC	47.7 mm	1.42 in	36 mm	1.88 in	0.89 in	22.5 mm
GlobTek, Inc. WR9HA1000USB-F(R6W)	Fixed Blade	ITE (Commercial)	1 A	5 W	5 V	CB cULus LPS PSE VCCI	NEMA 1-15P	North America	Wall Mount (Class II)	Level VI		60950-1	90 VAC	264 VAC	47.7 mm	1.42 in	36 mm	1.88 in	0.89 in	22.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
