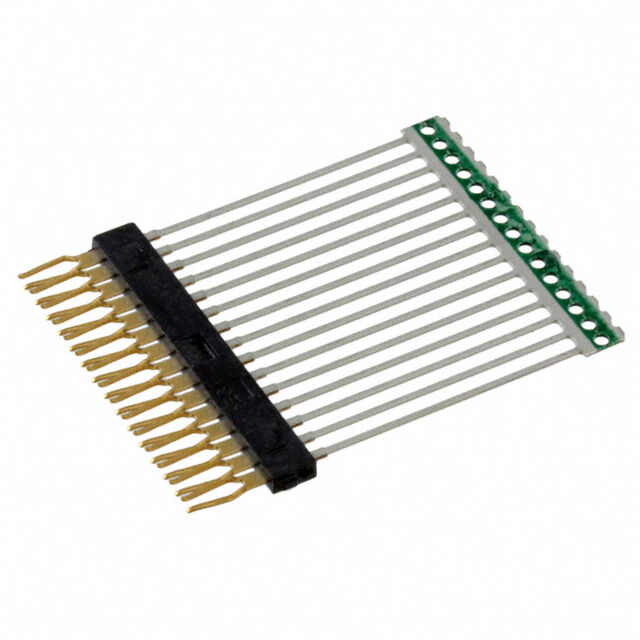

0051252011

Obsolete

Molex

CONN D-SUB SOCKET 28-36AWG PCB

Search across all available documentation for this part.

Obsolete

Molex

CONN D-SUB SOCKET 28-36AWG PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Termination Finish	Contact Type	Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Contact Form	Contact Termination	Termination Finish Thickness	Termination Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material, Finish	Connector Style	Number of Positions	Connector Type	Termination	Color	Dielectric Material	Mounting Type	Flange Feature	Voltage Rating	Material Flammability Rating
Molex 0051252011	Gold	Tin	Female Socket	Signal	Matrix Terminal Strip	27.5 AWG	36 AWG	0.76 Ám	30 Áin	Copper Alloy	Stamped	PCB Solder
Molex 0051251007	Gold	Tin	Male Pin	Signal	Matrix Terminal Strip	26 AWG	36 AWG	0.76 Ám	30 Áin	Phosphor Bronze	Stamped	Solder	2.54 µm	100 µin
Molex 0051251020	Gold	Tin	Male Pin	Signal	Matrix Terminal Strip	27.5 AWG	36 AWG	0.76 Ám	30 Áin	Phosphor Bronze	Stamped	PCB Solder	2.54 µm	100 µin
Molex 0051251032	Gold		Signal		Grounding Indents Shielded			0.76 Ám	30 Áin	Phosphor Bronze					0.05	0.05	-20 C	80 C	Nickel Plated Steel	Board to Board D-Type Matrix	160	Male Pins Plug	Solder	Black	Liquid Crystal Polymer (LCP) Glass Filled	Panel Mount Through Hole	Housing/Shell (Unthreaded)	40 V	UL94 V-0
Molex 0051251005	Gold	Tin	Male Pin	Signal	Matrix Terminal Strip			0.76 Ám	30 Áin	Phosphor Bronze	Stamped	PCB Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

D-Sub Contact Female Socket Gold 28-36 AWG Solder, PCB Stamped

Technical documentation and resources

No documents available
