171-015-213R911

Active

MH Connectors

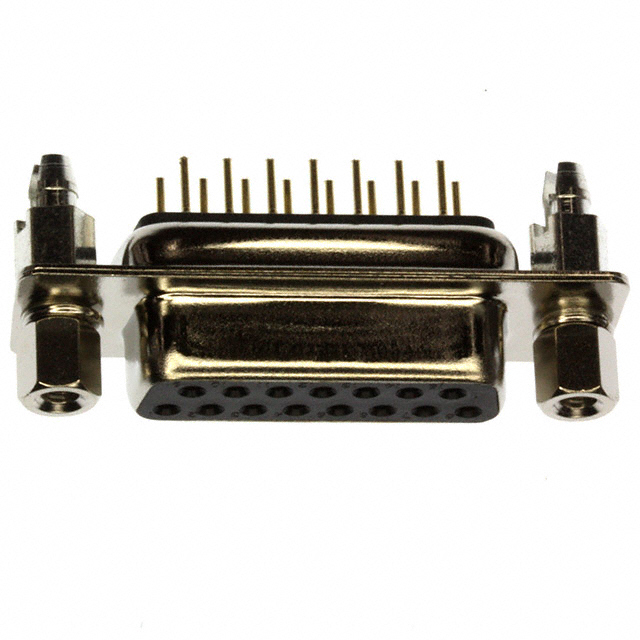

CONN D-SUB RCPT 15P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBackshell Reference Guide Datasheet

171-015-213R911

Active

MH Connectors

CONN D-SUB RCPT 15P PNL MNT SLDR

Deep-Dive with AI

DocumentsBackshell Reference Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	171-015-213R911

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

171-015 Series

Part	Shell Size, Connector Layout	Flange Feature	Connector Style	Contact Finish Thickness	Contact Material	Contact Type	Color	Dielectric Material	Shell Material, Finish	Number of Positions	Contact Form	Number of Rows	Contact Finish	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Amps)	Material Flammability Rating	Termination	Mounting Type	Features
MH Connectors 171-015-101L021	2	Cable Side	D-Sub	Flash	Copper Alloy	Signal	Black	Polybutylene Terephthalate (PBT) Glass Filled	Steel Yellow Chromate Plated Zinc	15	Stamped	2	Gold	Male Pins Plug	20 AWG	28 AWG	5 A	UL94 V-0
MH Connectors 171-015-202-031	2	4-40	D-Sub	Flash		Signal	Black	Polybutylene Terephthalate (PBT)		15	Stamped	2	Gold	Receptacle Female Sockets	20 AWG	28 AWG	5 A	UL94 V-0
MH Connectors 171-015-202-001	2	Housing/Shell (Unthreaded)	D-Sub	Flash		Signal	Black	Polybutylene Terephthalate (PBT)		15	Stamped	2	Gold	Receptacle Female Sockets	20 AWG	28 AWG	5 A	UL94 V-0
MH Connectors 171-015-212-911	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	Flash		Signal	Black	Polybutylene Terephthalate (PBT)		15	Stamped	2	Gold	Receptacle Female Sockets			5 A	UL94 V-0	Solder	Panel Mount Through Hole
MH Connectors 171-015-201L011	2	Cable Side	D-Sub	Flash		Signal	Black	Polybutylene Terephthalate (PBT) Glass Filled	Steel Yellow Chromate Plated Zinc	15	Stamped	2	Gold	Receptacle Female Sockets	20 AWG	28 AWG	5 A	UL94 V-0
MH Connectors 171-015-213R911	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	Flash	Brass	Signal	Black	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	15	Stamped	2	Gold	Receptacle Female Sockets			5 A	UL94 V-0	Solder	Panel Mount Through Hole
MH Connectors 171-015-113R011	2	4-40 Board Side	D-Sub	Flash	Brass	Signal	Black	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	15	Stamped	2	Gold	Male Pins Plug			5 A	UL94 V-0	Solder	Panel Mount Through Hole	Grounding Indents
MH Connectors 171-015-113R911	2	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	Flash	Brass	Signal	Black	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	15	Stamped	2	Gold	Male Pins Plug			5 A	UL94 V-0	Solder	Panel Mount Through Hole	Board Lock Grounding Indents
MH Connectors 171-015-212-001	2	Housing/Shell (Unthreaded)	D-Sub	Flash		Signal	Black	Polybutylene Terephthalate (PBT)		15	Stamped	2	Gold	Receptacle Female Sockets			5 A	UL94 V-0	Solder	Panel Mount Through Hole
MH Connectors 171-015-203L011	2	Cable Side	D-Sub	Flash		Signal	Black	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	15	Stamped	2	Gold	Receptacle Female Sockets	20 AWG	28 AWG	5 A	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.06
		10	$ 3.87
		25	$ 3.49
		40	$ 3.31
		80	$ 3.07
		230	$ 2.75
		440	$ 2.57
		945	$ 2.38
		2400	$ 2.17

Description

General part information

171-015 Series

15 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Backshell Reference Guide

Datasheet
