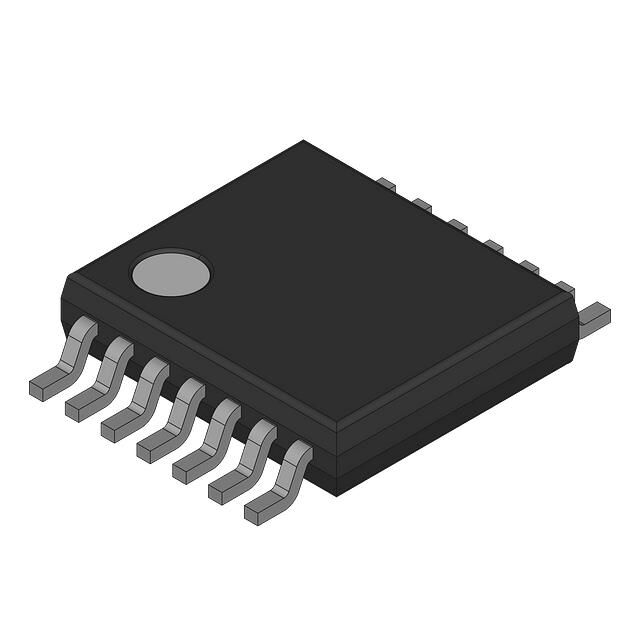

74ABT08PW,112

Active

Freescale Semiconductor - NXP

IC GATE AND

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC GATE AND

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT08PW,112

null

Part	Max Propagation Delay @ V, Max CL	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Inputs	Supplier Device Package	Input Logic Level - Low	Package / Case	Package / Case	Package / Case	Mounting Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Quiescent (Max) [Max]	Package / Case [x]	Package / Case [y]	Package / Case [custom]	Package / Case [custom]
Freescale Semiconductor - NXP 74ABT08PW,112
Freescale Semiconductor - NXP 74ABT08DB,118	3.4 ns	15 mA	20 mA	2	14-SSOP	0.8 V	5.3 mm	14-SSOP	0.209 "	Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA
Freescale Semiconductor - NXP 74ABT08D,118	3.4 ns	15 mA	20 mA	2	14-SO	0.8 V		14-SOIC		Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA	0.154 in	3.9 mm
Freescale Semiconductor - NXP 74ABT08DB,112	3.4 ns	15 mA	20 mA	2	14-SSOP	0.8 V	5.3 mm	14-SSOP	0.209 "	Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA
Freescale Semiconductor - NXP 74ABT08D,112	3.4 ns	15 mA	20 mA	2	14-SO	0.8 V		14-SOIC		Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA	0.154 in	3.9 mm
Freescale Semiconductor - NXP 74ABT08PW,118	3.4 ns	15 mA	20 mA	2	14-TSSOP	0.8 V		14-TSSOP		Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA			0.173 "	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	579	$ 0.52

General part information

IC Channel

Technical documentation and resources

No documents available
