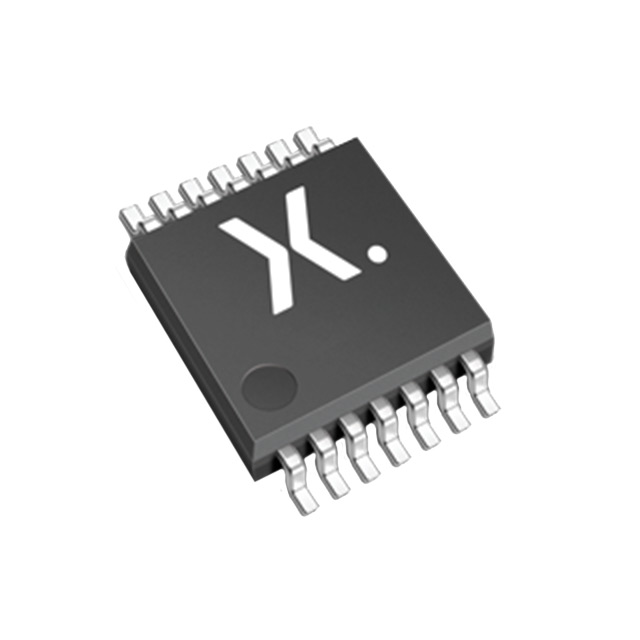

74ABT08PW,118

Active

Freescale Semiconductor - NXP

IC GATE AND 4CH 2-INP 14TSSOP

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC GATE AND 4CH 2-INP 14TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	74ABT08PW,118

Current - Output High, Low [custom]	15 mA
Current - Output High, Low [custom]	20 mA
Current - Quiescent (Max) [Max]	50 µA
Input Logic Level - Low	0.8 V
Logic Type	AND Gate
Max Propagation Delay @ V, Max CL	3.4 ns
Mounting Type	Surface Mount
Number of Circuits	4
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-TSSOP
Package / Case [custom]	0.173 "
Package / Case [custom]	4.4 mm
Supplier Device Package	14-TSSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Max Propagation Delay @ V, Max CL	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Number of Inputs	Supplier Device Package	Input Logic Level - Low	Package / Case	Package / Case	Package / Case	Mounting Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Logic Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Quiescent (Max) [Max]	Package / Case [x]	Package / Case [y]	Package / Case [custom]	Package / Case [custom]
Freescale Semiconductor - NXP 74ABT08PW,112
Freescale Semiconductor - NXP 74ABT08DB,118	3.4 ns	15 mA	20 mA	2	14-SSOP	0.8 V	5.3 mm	14-SSOP	0.209 "	Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA
Freescale Semiconductor - NXP 74ABT08D,118	3.4 ns	15 mA	20 mA	2	14-SO	0.8 V		14-SOIC		Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA	0.154 in	3.9 mm
Freescale Semiconductor - NXP 74ABT08DB,112	3.4 ns	15 mA	20 mA	2	14-SSOP	0.8 V	5.3 mm	14-SSOP	0.209 "	Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA
Freescale Semiconductor - NXP 74ABT08D,112	3.4 ns	15 mA	20 mA	2	14-SO	0.8 V		14-SOIC		Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA	0.154 in	3.9 mm
Freescale Semiconductor - NXP 74ABT08PW,118	3.4 ns	15 mA	20 mA	2	14-TSSOP	0.8 V		14-TSSOP		Surface Mount	4	85 °C	-40 °C	AND Gate	4.5 V	5.5 V	50 µA			0.173 "	4.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AND Gate IC 4 Channel 14-TSSOP
