09400100811

Active

HARTING Technology Group

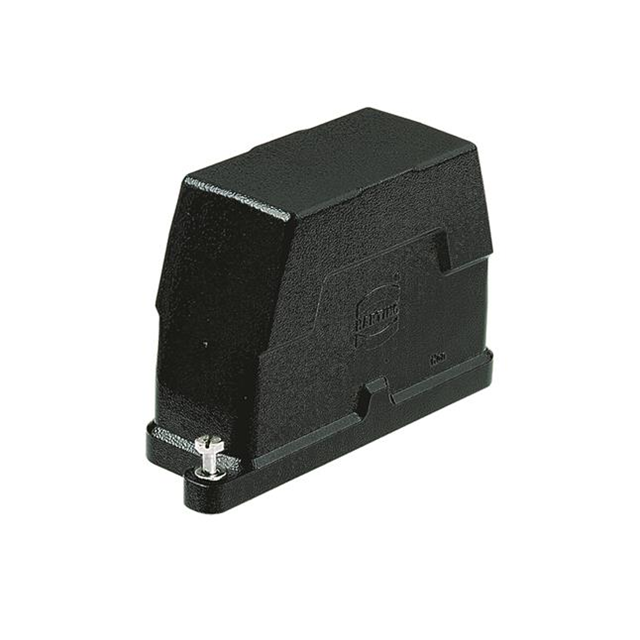

HAN 10 HPR HOOD - SCREW LOCKING W/O PG ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 10 HPR HOOD - SCREW LOCKING W/O PG ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Housing Finish	Connector Type	Housing Color	Lock Location	Size	Style	Housing Material	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size
HARTING Technology Group 09400100811	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Bottom Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C
HARTING Technology Group 09400100311	Epoxy Powder Paint	Base - Panel Mount	Black	Screw Locks on Hood	10B	Bottom Entry	Aluminum Die Cast	1.138 "	5.709 in	58 mm	28.9 mm	2.283 "	145 mm	125 °C	-40 °C
HARTING Technology Group 09400100502	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Side Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C	PG21
HARTING Technology Group 09400100511	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Side Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C	PG16
HARTING Technology Group 09400100412	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Top Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C	PG21
HARTING Technology Group 09400100301	Powder Coated	Base - Panel Mount	Black	Screw Locks on Hood	10B	Bottom Entry	Aluminum Die Cast	1.138 "	5.709 in	58 mm	28.9 mm	2.283 "	145 mm	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Bottom Entry 10B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
