09400100311

Active

HARTING Technology Group

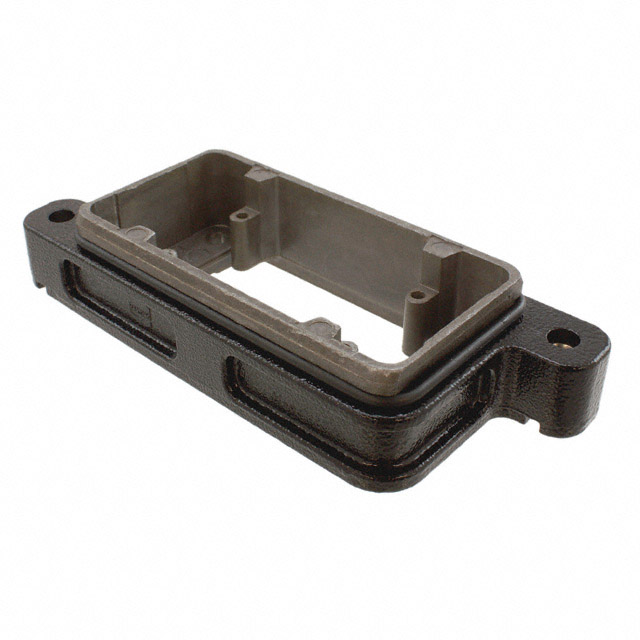

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, SCREW, 10B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, PANEL MOUNT, ALUMINUM BODY, SCREW, 10B

Technical Specifications

Parameters and characteristics for this part

Part	Housing Finish	Connector Type	Housing Color	Lock Location	Size	Style	Housing Material	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size
HARTING Technology Group 09400100811	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Bottom Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C
HARTING Technology Group 09400100311	Epoxy Powder Paint	Base - Panel Mount	Black	Screw Locks on Hood	10B	Bottom Entry	Aluminum Die Cast	1.138 "	5.709 in	58 mm	28.9 mm	2.283 "	145 mm	125 °C	-40 °C
HARTING Technology Group 09400100502	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Side Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C	PG21
HARTING Technology Group 09400100511	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Side Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C	PG16
HARTING Technology Group 09400100412	Powder Coated	Hood	Black	Screw Locks on Hood	10B	Top Entry	Aluminum Die Cast	3.957 in	5.709 in	58 mm	100.5 mm	2.283 "	145 mm	125 °C	-40 °C	PG21
HARTING Technology Group 09400100301	Powder Coated	Base - Panel Mount	Black	Screw Locks on Hood	10B	Bottom Entry	Aluminum Die Cast	1.138 "	5.709 in	58 mm	28.9 mm	2.283 "	145 mm	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
