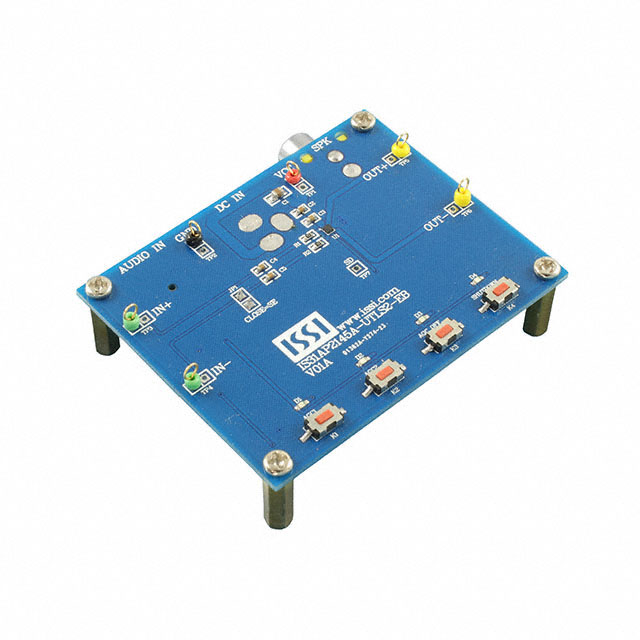

IS31AP2145A-UTLS2-EB

Obsolete

Lumissil Microsystems

EVAL BOARD FOR IS31AP2145A

Search across all available documentation for this part.

Obsolete

Lumissil Microsystems

EVAL BOARD FOR IS31AP2145A

Technical Specifications

Parameters and characteristics for this part

Specification	IS31AP2145A-UTLS2-EB

Contents	Board(s)
Max Output Power x Channels @ Load	3 W
Max Output Power x Channels @ Load [custom]	1
Output Type	1-Channel (Mono)
Utilized IC / Part	IS31AP2145A
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Utilized IC / Part	Output Type	Contents	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Package / Case	Mounting Type
Lumissil Microsystems IS31AP2145A-UTLS2-EB	IS31AP2145A	1-Channel (Mono)	Board(s)	1	3 W	2.7 V	5.5 V
Lumissil Microsystems IS31AP2145E-UTLS2-TR		1-Channel (Mono)		1	2.65 W 4 Ohm	2.7 V	5.5 V	Depop Short-Circuit Thermal Protection	85 °C	-40 °C	Class D	1.5x1.5 9-UTQFN	9-UFBGA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IS31AP2145A - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
