IS31AP2145E-UTLS2-TR

Unknown

Lumissil Microsystems

IC AMP CLASS D MONO 2.65W 9UTQFN

Search across all available documentation for this part.

Unknown

Lumissil Microsystems

IC AMP CLASS D MONO 2.65W 9UTQFN

Technical Specifications

Parameters and characteristics for this part

Specification	IS31AP2145E-UTLS2-TR

Features	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load	2.65 W, 4 Ohm
Max Output Power x Channels @ Load [custom]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)

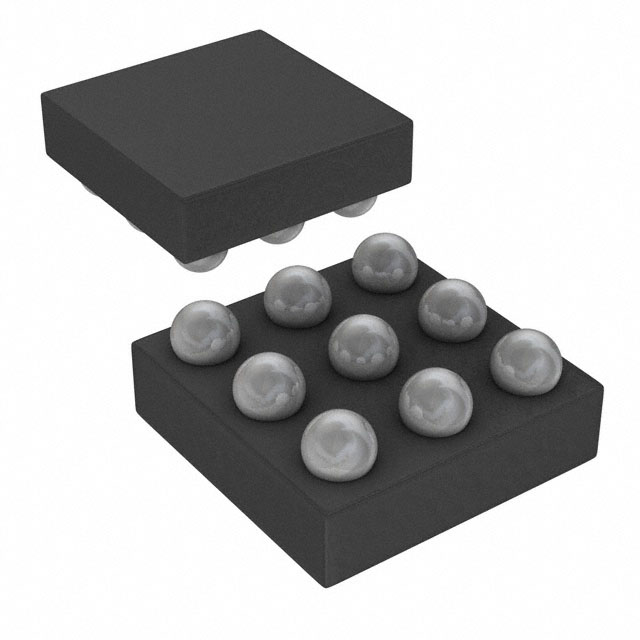

Package / Case	9-UFBGA
Supplier Device Package	1.5x1.5, 9-UTQFN
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Part	Utilized IC / Part	Output Type	Contents	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Voltage - Supply [Min]	Voltage - Supply [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Supplier Device Package	Package / Case	Mounting Type
Lumissil Microsystems IS31AP2145A-UTLS2-EB	IS31AP2145A	1-Channel (Mono)	Board(s)	1	3 W	2.7 V	5.5 V
Lumissil Microsystems IS31AP2145E-UTLS2-TR		1-Channel (Mono)		1	2.65 W 4 Ohm	2.7 V	5.5 V	Depop Short-Circuit Thermal Protection	85 °C	-40 °C	Class D	1.5x1.5 9-UTQFN	9-UFBGA	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 9-UTQFN (1.5x1.5)
