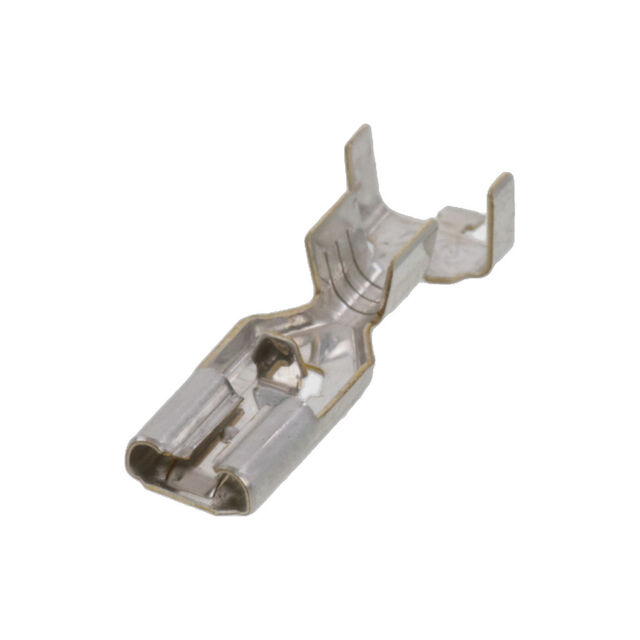

0350689902
ActiveMolex
CONN QC RCPT 18-20AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0350689902
ActiveMolex
CONN QC RCPT 18-20AWG 0.187
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0350689902 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.756 in |
| Length - Overall [x] | 19.2 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.197 in |
| Tab Length | 5 mm |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.11 | |
| Tape & Reel (TR) | 60000 | $ 0.03 | ||
Description
General part information
035068 Series
0.187" (4.75mm) Quick Connect Female 18-20 AWG Crimp Connector Non-Insulated
