0350689702
ActiveMolex

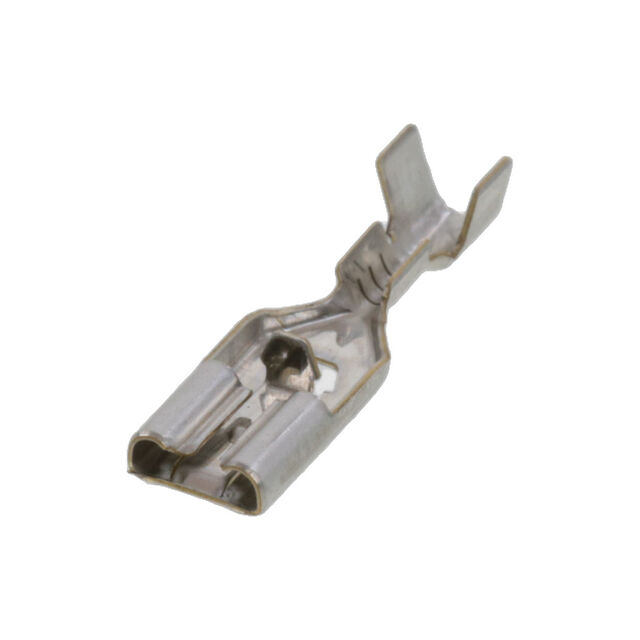

CONN QC RCPT 20-22AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0350689702
ActiveMolex
CONN QC RCPT 20-22AWG 0.187
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0350689702 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 0.106 " |
| Insulation Diameter [Max] [diameter] | 2.69 mm |
| Insulation Diameter [Min] [diameter] | 0.059 " |
| Insulation Diameter [Min] [diameter] | 1.5 mm |
| Length - Overall [x] | 0.756 in |
| Length - Overall [x] | 19.2 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.197 in |
| Tab Length | 5 mm |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.11 | |
| 10 | $ 0.08 | |||
| 100 | $ 0.06 | |||
| 1000 | $ 0.05 | |||
| 2500 | $ 0.04 | |||
| Tape & Reel (TR) | 5000 | $ 0.03 | ||
| 10000 | $ 0.03 | |||
Description
General part information
035068 Series
0.187" (4.75mm) Quick Connect Female 20-22 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
