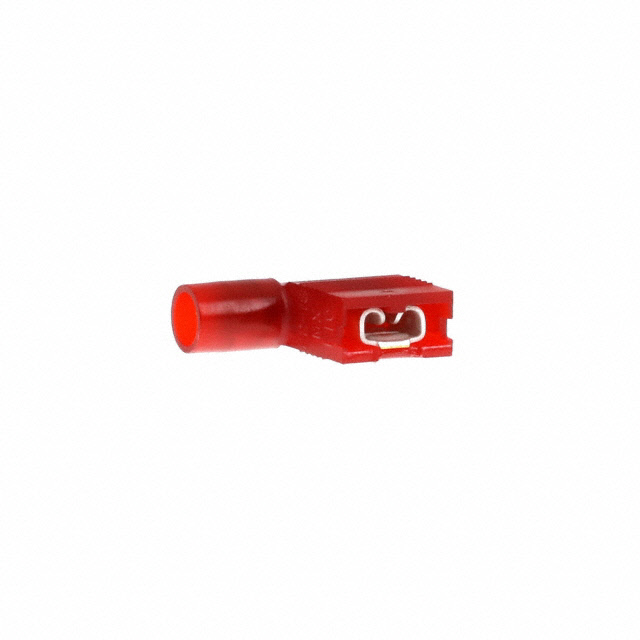

0190060009
ActiveMolex
CONN QC RCPT 18-22AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
0190060009
ActiveMolex
CONN QC RCPT 18-22AWG 0.187
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190060009 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Fully Insulated |
| Insulation Diameter | 3.81 mm |
| Insulation Diameter | 0.15 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.05 | |
| 10 | $ 0.87 | |||
| 100 | $ 0.73 | |||
| Tape & Reel (TR) | 250 | $ 0.62 | ||
| 500 | $ 0.59 | |||
| 750 | $ 0.57 | |||
| 1250 | $ 0.54 | |||
| 1750 | $ 0.53 | |||
| 2500 | $ 0.51 | |||
| 6250 | $ 0.48 | |||
| 12500 | $ 0.46 | |||
Description
General part information
019006 Series
0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated
