0190060006

Active

Molex

CONN QC RCPT 18-22AWG 0.187

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

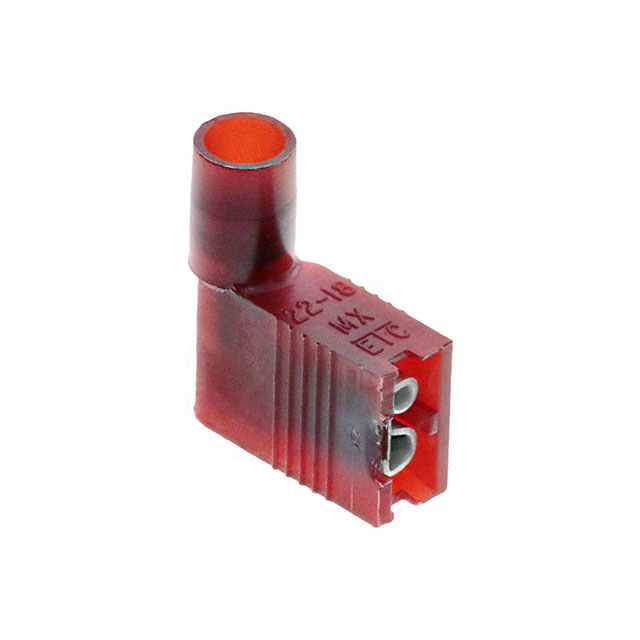

0190060006

Active

Molex

CONN QC RCPT 18-22AWG 0.187

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190060006

Color	Red
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Fully Insulated
Insulation Diameter	3.81 mm
Insulation Diameter	0.15 in
Mounting Type	Free Hanging (In-Line), Right Angle
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Flag, Angled - 90°
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019006 Series

Part	Terminal Type	Tab Thickness	Tab Thickness	Insulation Diameter	Insulation Diameter	Insulation	Mounting Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Color	Gender	Termination	Tab Width	Tab Width
Molex 0190060006	Angled - 90° Flag	0.02 "	0.51 mm	3.81 mm	0.15 in	Fully Insulated	Free Hanging (In-Line) Right Angle	Brass	22 AWG	17.5 AWG	Tin	Red	Female	Crimp	4.75 mm	0.187 in
Molex 0190060009	Angled - 90° Flag	0.032 in	0.81 mm	3.81 mm	0.15 in	Fully Insulated	Free Hanging (In-Line) Right Angle	Brass	22 AWG	17.5 AWG	Tin	Red	Female	Crimp	4.75 mm	0.187 in
Molex 0190060014	Angled - 90° Flag	0.032 in	0.81 mm			Fully Insulated	Free Hanging (In-Line) Right Angle	Brass			Tin	Blue	Female	Crimp	6.35 mm	0.25 in
Molex 0190060024	Angled - 90° Flag	0.032 in	0.81 mm			Fully Insulated	Free Hanging (In-Line) Right Angle	Brass				Blue	Female	Crimp	4.75 mm	0.187 in
Molex 0190060018	Angled - 90° Flag	0.02 "	0.51 mm			Fully Insulated	Free Hanging (In-Line) Right Angle	Brass			Tin	Blue	Female	Crimp	4.75 mm	0.187 in
Molex 0190060011	Angled - 90° Flag	0.032 in	0.81 mm			Fully Insulated	Free Hanging (In-Line) Right Angle	Brass			Tin	Blue	Female	Crimp	6.35 mm	0.25 in
Molex 0190060016	Angled - 90° Flag	0.02 "	0.51 mm			Fully Insulated	Free Hanging (In-Line) Right Angle	Brass				Blue	Female	Crimp	4.75 mm	0.187 in
Molex 0190060005	Angled - 90° Flag	0.02 "	0.51 mm	3.81 mm	0.15 in	Fully Insulated	Free Hanging (In-Line) Right Angle	Brass	22 AWG	17.5 AWG		Red	Female	Crimp	4.75 mm	0.187 in
Molex 0190060007	Angled - 90° Flag	0.02 "	0.51 mm	3.81 mm	0.15 in	Fully Insulated	Free Hanging (In-Line) Right Angle	Brass	22 AWG	17.5 AWG		Red	Female	Crimp	4.75 mm	0.187 in
Molex 0190060072	Angled - 90° Flag	0.032 in	0.81 mm	3.81 mm	0.15 in	Fully Insulated	Free Hanging (In-Line) Right Angle	Brass	22 AWG	17.5 AWG	Tin	Red	Female	Crimp	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.94
		10	$ 0.78
		100	$ 0.65
	Tape & Reel (TR)	250	$ 0.65
		1250	$ 0.52
		1750	$ 0.49
		2500	$ 0.47
		6250	$ 0.46
		12500	$ 0.42

Description

General part information

019006 Series

0.187" (4.75mm) Quick Connect Female 18-22 AWG Crimp Connector Fully Insulated

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
