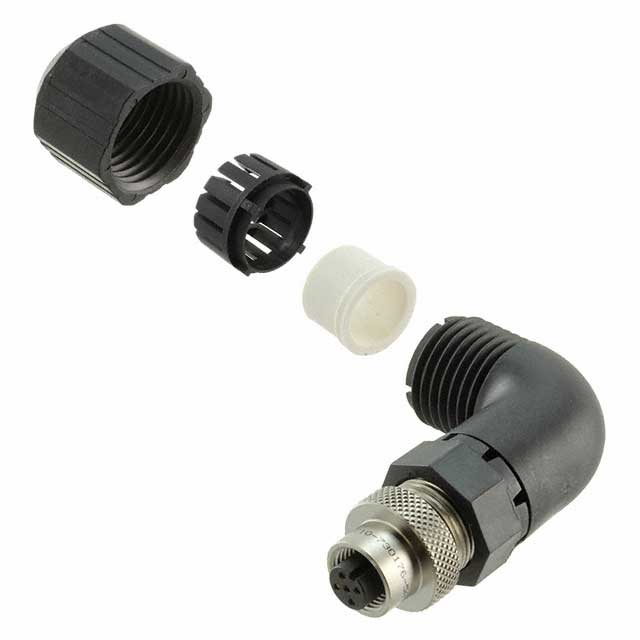

HDM12PF05A1RA

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG FMALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HDM12PF05A1RA

Applications	Industrial, Mass Transit
Backshell Material, Plating	Plastic
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VAC

Part	Orientation	Backshell Material, Plating	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Ingress Protection	Features	Applications	Color	Shell Size - Insert	Voltage Rating	Shielding	Contact Finish - Mating	Mounting Type	Primary Material
Amphenol Industrial Operations HDM12PF05B1ST	B	Plastic	Female Sockets Plug	4 A	-55 °C	125 °C	Nickel	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Industrial Mass Transit	Silver	M12-5	60 VAC	Unshielded	Gold	Free Hanging (In-Line)	Metal
Amphenol Industrial Operations HDM12PF05A1RA	A	Plastic	Female Sockets Plug	4 A	-55 °C	125 °C	Nickel	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Industrial Mass Transit	Silver	M12-5	60 VAC	Unshielded	Gold	Free Hanging (In-Line) Right Angle	Metal
Amphenol Industrial Operations HDM12PF05A1STM	A	Metal	Female Sockets Plug	4 A	-55 °C	125 °C	Nickel	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Industrial Mass Transit	Silver	M12-5	60 VAC	Unshielded	Gold	Free Hanging (In-Line)	Metal
Amphenol Industrial Operations HDM12PF05B1RAM	B	Metal	Female Sockets Plug	4 A	-55 °C	125 °C	Nickel	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Industrial Mass Transit	Silver	M12-5	60 VAC	Unshielded	Gold	Free Hanging (In-Line) Right Angle	Metal
Amphenol Industrial Operations HDM12PF05A1ST	A	Plastic	Female Sockets Plug	4 A	-55 °C	125 °C	Nickel	IP67 - Dust Tight Waterproof	Backshell Coupling Nut	Industrial Mass Transit	Silver	M12-5	60 VAC	Unshielded	Gold	Free Hanging (In-Line)	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Solder Cup
