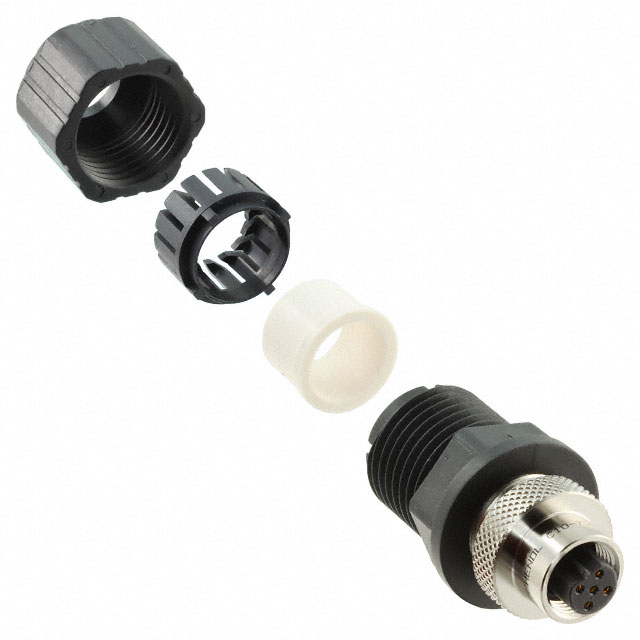

HDM12PF05B1ST
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
HDM12PF05B1ST
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDM12PF05B1ST |
|---|---|
| Applications | Industrial, Mass Transit |
| Backshell Material, Plating | Plastic |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | B |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Voltage Rating | 60 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.77 | |
| 10 | $ 19.42 | |||
| 25 | $ 18.34 | |||
| 50 | $ 18.24 | |||
| 100 | $ 17.15 | |||
| 250 | $ 16.27 | |||
| 500 | $ 15.87 | |||
Description
General part information
HDM12PF05 Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
