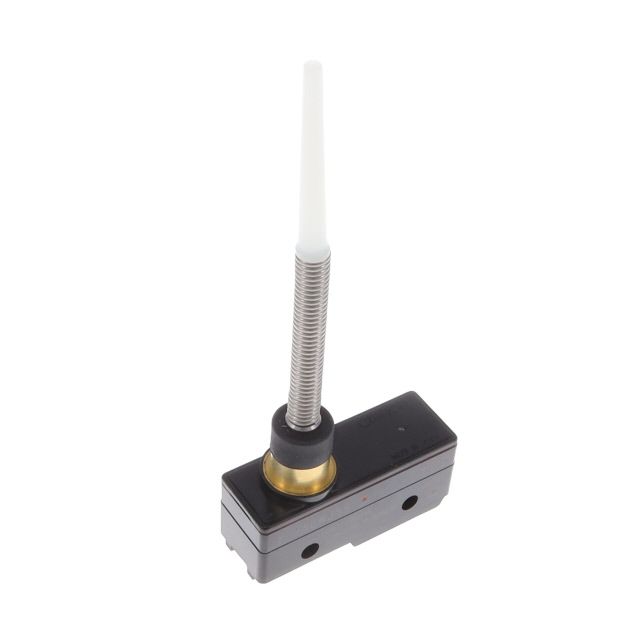

Z-15GNJ55

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Z-15GNJ55

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 15A 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Z-15GNJ55

Actuator Type	Rod, Spring
Circuit	SPDT
Current Rating (Amps)	2 A, 15 A
Electrical Life	100000 Cycles
Ingress Protection	IP62
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-15 °C
Pretravel	20 mm
Pretravel	0.787 in
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Z-15G Series

Part	Ingress Protection	Switch Function	Overtravel	Overtravel	Operating Force	Circuit	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Operating Position	Operating Position	Voltage Rating - AC	Current Rating (Amps)	Actuator Type	Differential Travel	Differential Travel	Mechanical Life	Termination Style	Voltage Rating - DC	Release Force
Omron Electronics Inc-EMC Div Z-15GD55-MRA	IP62	On-Mom	1.6 mm	0.062 in	540 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C	0.071 in	1.8 mm	0.846 in	21.5 mm	125 V	6 A 15 A	Round (Pin Plunger)	0.002 in	0.05 mm	20000000 Cycles	Solder Lug	30 V	114 gf
Omron Electronics Inc-EMC Div Z-15GK55	IP62	On-Mom	1.6 mm	0.062 in	540 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C	0.09 in	2.3 mm	1.11 in	28.2 mm	125 V	6 A 15 A	Round (Pin Plunger)	0.002 in	0.05 mm	20000000 Cycles	Solder Lug	30 V	114 gf
Omron Electronics Inc-EMC Div Z-15GW2277-B	IP00	On-Mom	2.4 mm	0.094 in	180 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-25 °C			1.625 in	41.3 mm	125 V	6 A 15 A	Lever Roller	0.031 "	0.8 mm	10000000 Cycles	Screw Terminal	30 V	50 gf
Omron Electronics Inc-EMC Div Z-15GNJ55-MR2 0.5M																	Rod Spring
Omron Electronics Inc-EMC Div Z-15GW22	IP00	On-Mom	2.4 mm	0.094 in		SPDT	Chassis Mount	500000 Cycles	80 C	-25 °C			1.188 in	30.2 mm	125 V	6 A 15 A	Lever Roller	0.02 in	0.5 mm	10000000 Cycles	Solder Lug	30 V	42 gf
Omron Electronics Inc-EMC Div Z-15GW255-B7-K	IP62	On-Mom	4 mm	0.158 in	130 gf	SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C			1.188 in	30.2 mm	125 V	6 A 15 A	Lever Roller	0.062 in	1.6 mm	20000000 Cycles	Screw Terminal	30 V	21 gf
Omron Electronics Inc-EMC Div Z-15GNJ55	IP62	On-Mom			50 gf	SPDT	Chassis Mount	100000 Cycles	80 C	-15 °C	0.787 in	20 mm			125 V	2 A 15 A	Rod Spring			1000000 Cycles	Solder Lug	30 V
Omron Electronics Inc-EMC Div Z-15GW2155-B	IP62	On-Mom	2 mm	0.079 in		SPDT	Chassis Mount	500000 Cycles	80 C	-15 °C			0.748 "	19 mm	125 V	6 A 15 A	Lever Straight	0.04 in	1 mm	10000000 Cycles	Screw Terminal	30 V	28 gf
Omron Electronics Inc-EMC Div Z-15GW32-B
Omron Electronics Inc-EMC Div Z-15GQ-C	IP00	On-Mom				SPDT		500000 Cycles	80 C	-25 °C					125 V	6 A 15 A	Overtravel Plunger			20000000 Cycles	Solder Lug	30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.87
		10	$ 23.90
		25	$ 21.91
		40	$ 20.58
		80	$ 19.26
		230	$ 18.59
		440	$ 17.93

Description

General part information

Z-15G Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

No documents available
